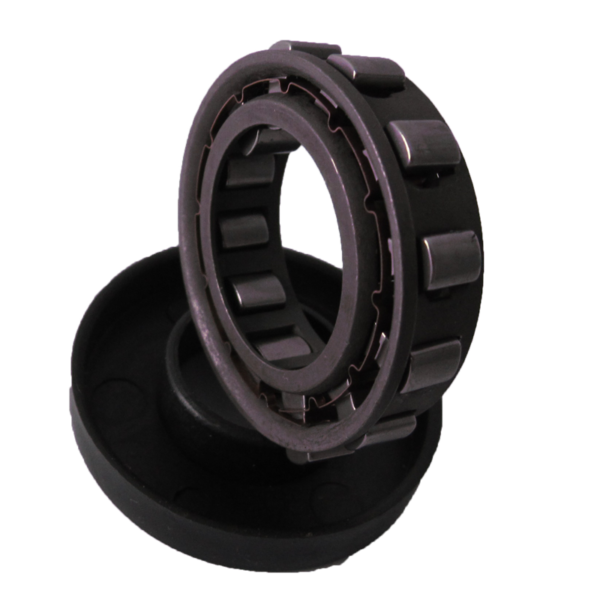

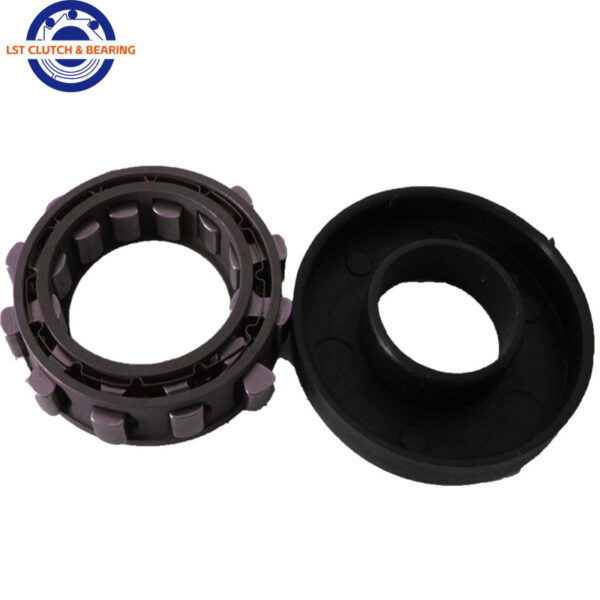

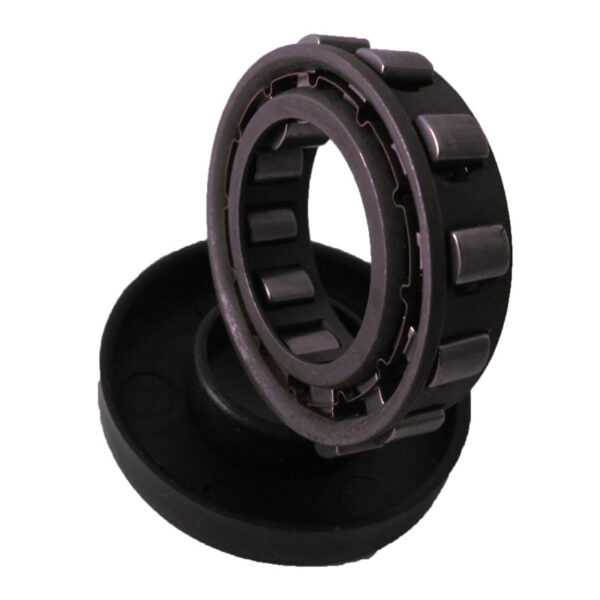

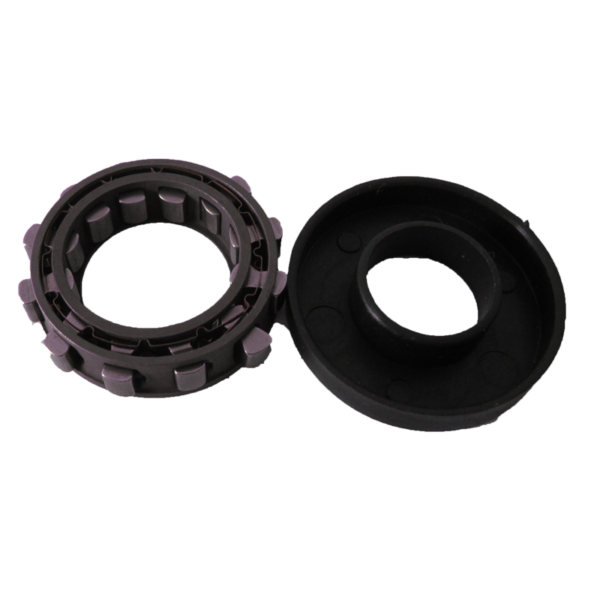

DC2222G Sprag Clutch | Industrial One Way Clutch
DC2222G Sprag Clutch is a compact DC Series one way freewheel clutch designed for industrial machinery and automotive transmission applications. Featuring a precision 12-sprag locking structure and compact 22.225 × 38.885 × 10 mm design, it provides reliable one-direction torque transmission, smooth overrunning performance and excellent durability. LSTO manufactures professional sprag clutch and freewheel clutch solutions with OEM customization, strict quality control and engineering support for global transmission customers.
DC2222G Sprag Clutch for Industrial & Automotive One Way Transmission Applications
DC2222G Sprag Clutch | Compact DC Series One Way Freewheel Clutch for Industrial Applications
Introduction: What Is DC2222G Sprag Clutch?
The DC2222G Sprag Clutch is a compact DC series one way freewheel clutch designed for industrial machinery, automotive components and mechanical transmission systems.
Using precision sprag locking technology, DC2222G provides:
- One-direction torque transmission
- Automatic mechanical locking
- Freewheel operation
- Backstop protection
Unlike friction-based clutch systems, a sprag clutch uses wedge-shaped locking elements between the inner and outer races.
When driving torque is applied:
- The sprags lock instantly
- Torque is transferred efficiently
- Mechanical slip is minimized
When the driven side rotates faster:
- The sprags release
- Free rotation is achieved
- Reverse torque is prevented
This makes DC2222G suitable for compact transmission systems requiring high reliability and fast response.
Product Overview
| Item | Specification |
|---|---|
| Model | DC2222G |
| Product Type | Sprag Freewheel Clutch |
| Series | DC Series |
| Structure | Sprag Type One Way Clutch |
| Inner Diameter | 22.225 mm |
| Outer Diameter | 38.885 mm |
| Width | 10 mm |
| Sprag Quantity | 12 Sprags |
| Torque Capacity | Approx. 63 Nm |
| Application | Industrial / Automotive |
| Function | Overrunning & Backstopping |
Working Principle of DC2222G One Way Clutch
Locking Direction
When the driving shaft rotates:
- Inner race starts rotating.
- Sprag elements move into locking position.
- Inner and outer races engage.
- Torque is transmitted.
Benefits:
- Fast engagement
- High mechanical efficiency
- Reliable power transfer
Freewheel Direction
When the driven side rotates faster:
- Sprags release automatically.
- Relative rotation is allowed.
- Reverse torque is avoided.
The automatic switching function makes DC2222G ideal for continuous overrunning applications.
Key Features of DC2222G Sprag Clutch
1. Compact Structure Design
DC2222G is one of the smaller DC series sprag clutch models.
Compact dimensions:
22.225 × 38.885 × 10 mm
make it suitable for applications where installation space is limited.
2. Precision 12 Sprag Locking System
The DC2222G uses a 12-sprag locking structure.
Advantages:
| Feature | Benefit |
|---|---|
| Multiple sprags | Stable load distribution |
| Wedge locking | Fast torque engagement |
| Precision cage design | Reliable operation |
| Compact structure | Easy integration |
3. High-Speed Operating Capability
DC2222G is designed for applications requiring:
- Frequent start and stop cycles
- High rotational speed
- Reliable engagement
- Long service life
Typical operating environments:
- Industrial machinery
- Small gear transmission systems
- Automotive mechanisms
Application Areas
Automotive Components
DC2222G can be used in:
| Application | Function |
|---|---|
| Transmission System | One-way torque control |
| Drive Mechanism | Direction control |
| Mechanical Assembly | Overrunning function |
| Vehicle Components | Power transmission |
Industrial Equipment
Typical applications:
| Industry | Usage |
|---|---|
| Gearbox | Backstop function |
| Automation Equipment | Rotation control |
| Machinery Drive | Overrunning |
| Power Transmission | Torque management |
Advantages Compared With Traditional Clutch Systems
| Feature | DC2222G Sprag Clutch | Friction Clutch |
|---|---|---|
| Locking Method | Mechanical wedge locking | Friction contact |
| Response Speed | Instant | Slower |
| Energy Loss | Very Low | Higher |
| Maintenance | Reduced | More frequent |
| Service Life | Long | Medium |
Why Choose LSTO DC Series Sprag Clutch?
LSTO specializes in manufacturing:
- DC Series Sprag Clutch
- Automotive One Way Clutch
- Industrial Freewheel Clutch
- Transmission Overrunning Clutch
Our manufacturing capabilities include:
Precision Manufacturing
- CNC machining
- Precision grinding
- Heat treatment
- Assembly inspection
Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Testing | Ensure mechanical strength |
| Dimension Inspection | Guarantee fitting accuracy |
| Hardness Testing | Improve wear resistance |
| Functional Testing | Verify locking performance |
OEM Replacement & Custom Manufacturing
LSTO supports global customers with:
- OEM replacement
- Drawing-based production
- Customized specifications
- Sample development
| Service | Customer Benefit |
|---|---|
| Engineering analysis | Correct product selection |
| Prototype testing | Faster validation |
| Mass production | Stable supply |
| Quality control | Reduced sourcing risk |
How To Select A DC Sprag Clutch Supplier?
For industrial and automotive buyers, key evaluation factors include:
Manufacturing Experience
A professional supplier should have:
- Sprag clutch production experience
- Precision machining capability
- Stable quality management
Technical Support
Including:
- Application analysis
- Product matching
- Customized development
Supply Capability
Important factors:
- Production capacity
- Delivery reliability
- Export experience
FAQ About DC2222G Sprag Clutch
What is DC2222G?
DC2222G is a DC series sprag freewheel clutch designed for compact industrial and automotive transmission applications.
What are the dimensions of DC2222G?
The standard dimensions are:
- Inner diameter: 22.225 mm
- Outer diameter: 38.885 mm
- Width: 10 mm
How many sprags does DC2222G have?
DC2222G uses 12 precision sprag elements for one-way locking performance.
What is the function of DC2222G?
It allows rotation in one direction while locking automatically in the opposite direction for torque transmission and backstop applications.
Can LSTO customize DC series sprag clutches?
Yes. LSTO provides OEM replacement and customized DC sprag clutch manufacturing according to customer requirements.
Conclusion
The DC2222G Sprag Clutch is a compact and reliable DC Series one way freewheel clutch designed for industrial and automotive transmission applications.
With its precision 12-sprag locking structure, compact dimensions and reliable overrunning performance, DC2222G provides efficient torque transmission and long service life in demanding mechanical systems.
LSTO specializes in DC Series Sprag Clutch, Automotive One Way Clutch and Industrial Freewheel Clutch solutions, offering OEM manufacturing, customized engineering and global supply support.
