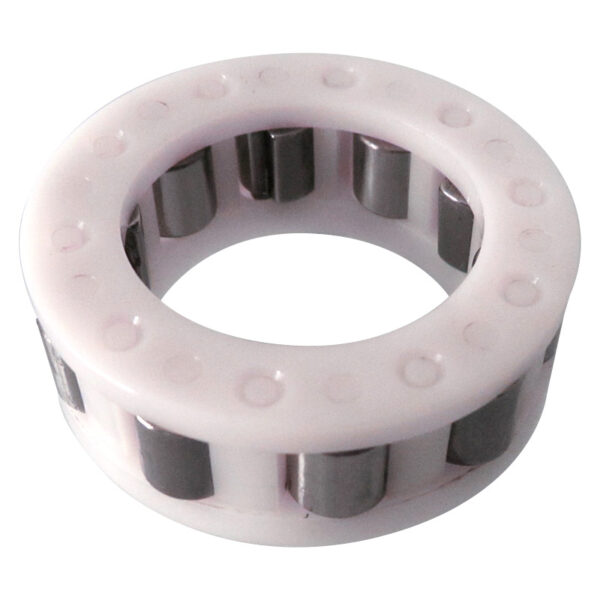

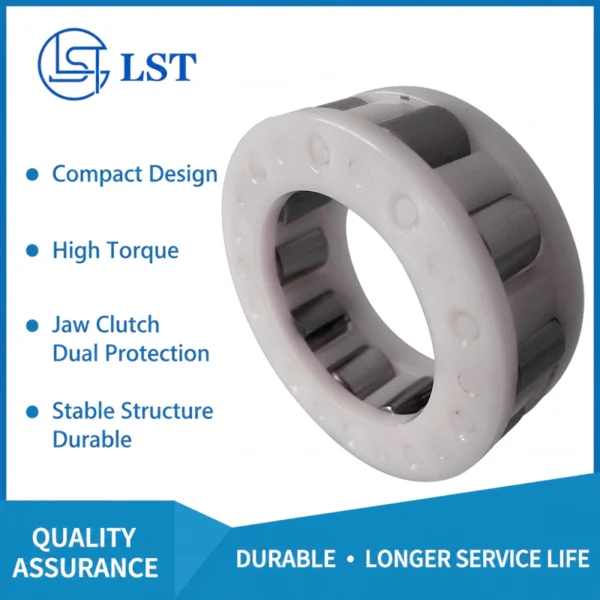

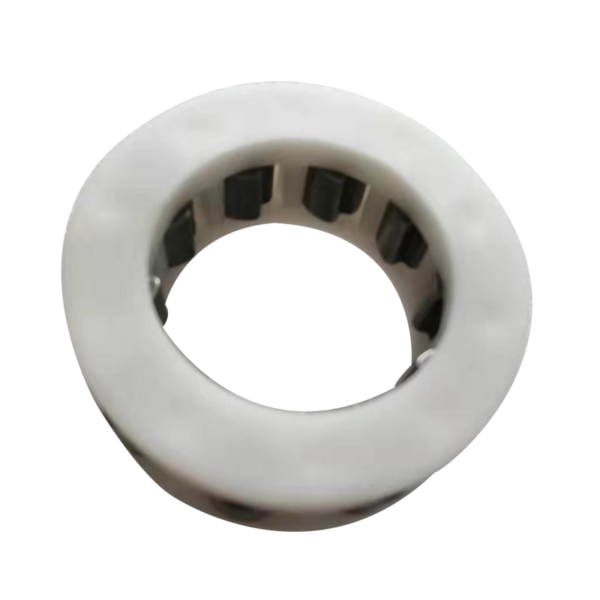

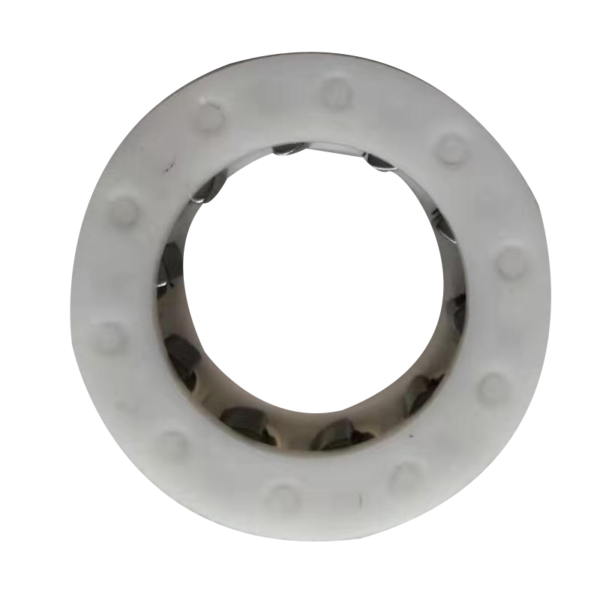

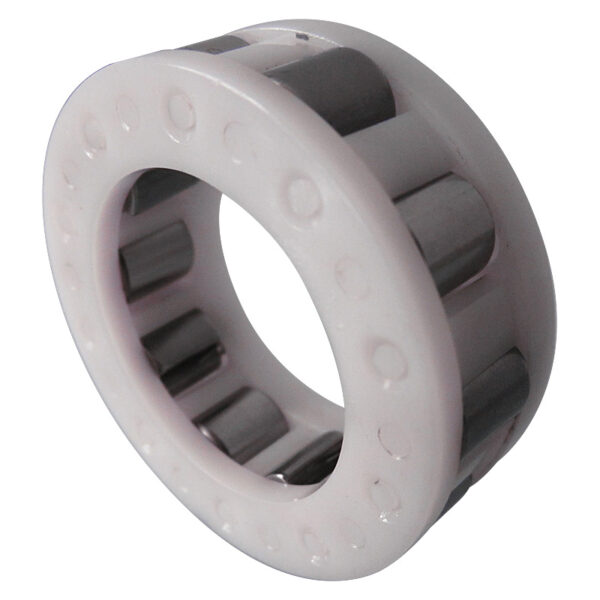

Precision Overrunning and Indexing Sprag Clutch for Textile Machinery: DC304817-FF30

Are you facing erratic feed patterns, tension loss, or premature component wear in your high-speed textile weaving, knitting, or spinning equipment?

Textile automation demands far more than standard industrial torque transmission; it requires ultra-precise indexing, instantaneous locking response, and the structural integrity to withstand millions of high-frequency start-stop cycles daily. Many standard single-cage freewheels fail rapidly under these conditions because they cannot handle the unique harmonic vibrations and relentless rotational direction shifts. When generic clutches fail, they cause fabric flaws, inconsistent yarn synchronization, and expensive, unscheduled production downtime.

This technical guide demonstrates how upgrading to the specialized precision overrunning and indexing sprag clutch DC304817-FF30 provides the micro-geometric accuracy required for fault-free textile operations.

💡 Quick Answer

The DC304817-FF30 sprag clutch is custom-engineered for the rigorous indexing and backstopping demands of specialized textile machinery. Featuring an advanced Double Cage (DC) stabilization matrix and customized FF30 specification parameters, this premium component guarantees synchronous element engagement and near-zero backlash. By uniformly distributing load across the precision cam matrix, it eliminates mechanical shudder and synchronization lag, securing stable yarn tension and maximum fabric quality at ultra-high operating speeds.

Technical Advantages of the DC304817-FF30 Textile Design

The DC304817-FF30 is manufactured to rigid specifications, offering distinct structural advantages for modern textile mills:

• High-Frequency Indexing Precision: The synchronized dual-cage configuration forces all sprags to bite and release simultaneously, maintaining sub-millimeter positioning accuracy across intense production runs.

• FF30 Application Optimization: The specialized FF30 engineering parameters ensure optimized friction torque and custom internal clearances tailored to withstand the constant accelerations and fine lint-filled environments of textile lines.

• Advanced GCr15 Steel Metallurgy: Premium-grade bearing steel undergoes advanced vacuum-degassed heat treatment to maintain a high-hardness mechanical bite, preventing element rollover and skating.

Step-by-Step Installation & Inspection Protocol

Step 1: Meticulously Audit Race Concentricity

Textile machine components operate within tightly synchronized tolerances. Before dropping the DC304817-FF30 assembly into the housing, thoroughly flush and clean the mating inner hub and outer drum races. Use a digital micrometer to verify sub-micron clearances and ensure zero structural misalignment.

Step 2: Confirm Instant Mechanical Lockup Direction

Manually test the sub-assembly on the bench before final installation. In textile indexing applications, the DC304817-FF30 must freewheel seamlessly with minimal drag torque and lock up with absolute firmness instantly in the opposite direction.

Step 3: Implement Proper Lubrication Management

Textile machinery environments are highly sensitive to lubricant leakage and lint contamination. Use the factory-specified high-stability, low-drag oil or specialized grease to ensure the double-cage mechanism operates cleanly without attracting fibers or dust.

Frequently Asked Questions

Q: What makes the DC304817-FF30 different from standard industrial sprag clutches?

The DC304817-FF30 features double-cage synchronization coupled with specialized “FF30” engineering specifications. This optimizes internal clearances and engagement friction dynamics to specifically survive the high-speed harmonic vibrations unique to textile machinery.

Q: Can the DC304817-FF30 be used as a drop-in replacement for OEM textile parts?

Yes. It is engineered to drawing-compliant specifications for 100% drop-in interchangeability with major OEM textile gearboxes, yarn feed units, and high-frequency indexing hubs.

Q: Does LST support high-volume manufacturing for textile equipment distributors?

Yes. LST is a professional high-volume OEM/ODM manufacturer. We provide drawing-compliant one-way clutches, indexing sprags, and precision bearings with micro-level tolerance control to secure global textile MRO supply chains.

Free Textile Automation Technical Blueprint

Download our technical manual and get:

• ✅ DC304817-FF30 Indexing Direction & Clearance Charts

• ✅ Textile Gearbox Tolerance and Wear Specification Sheet

• ✅ High-Frequency Operation Troubleshooting Blueprint

• ✅ Textile Power Transmission Cross-Reference Sheet

Ready to Secure Your Textile Production Supply Chain?

If your commercial distribution network, textile production facility, or machinery repair depot demands zero-defect, drawing-compliant components, LST provides high-volume manufacturing for premium freewheels. Our DC304817-FF30 sprag clutches are built to maximize machine uptime.
