4T80E DC88104 Clutch Sprag: Convert Hydraulic Torque
LST DC88104 clutch sprag, paired with the DPS90167 thrust washer kit, is engineered to convert hydraulic torque into reliable mechanical rotation under high-load conditions in GM 4T80E transmissions. Utilizing a dual-cage design with precision-ground cams, this premium one-way freewheel clutch ensures instant engagement and optimal torque distribution, effectively preventing element rollover under heavy acceleration.

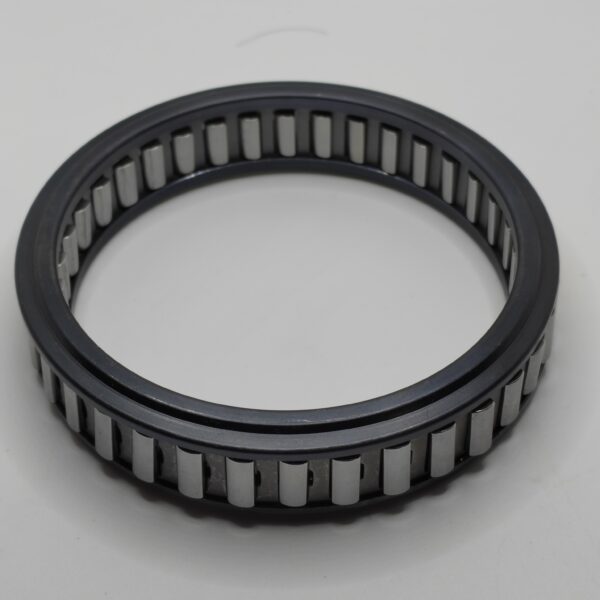

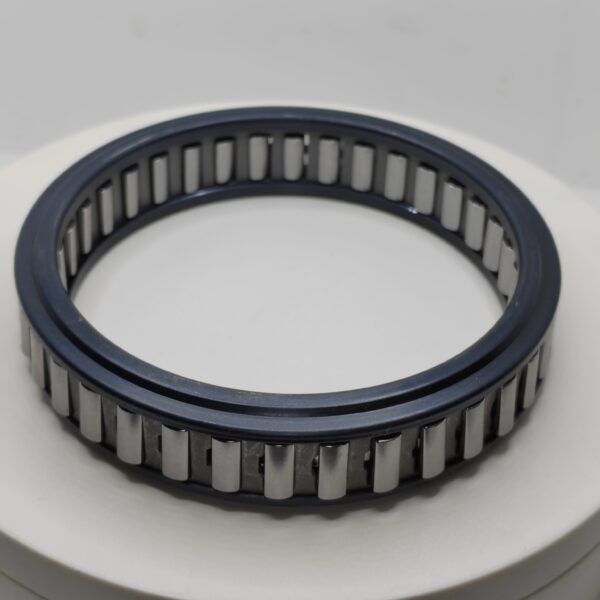

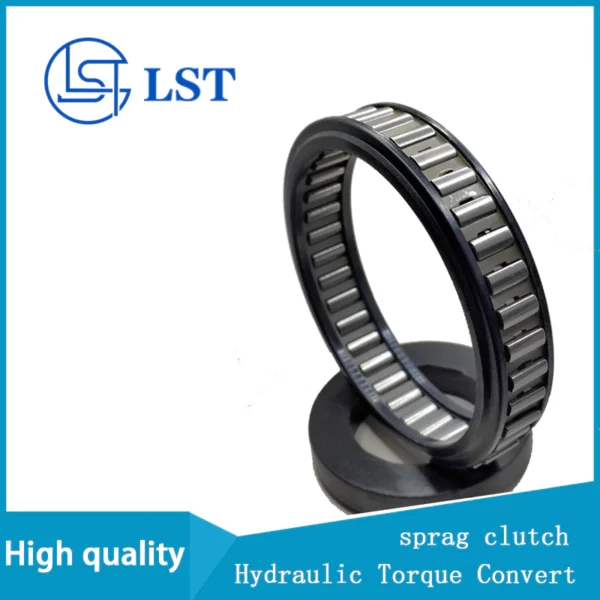

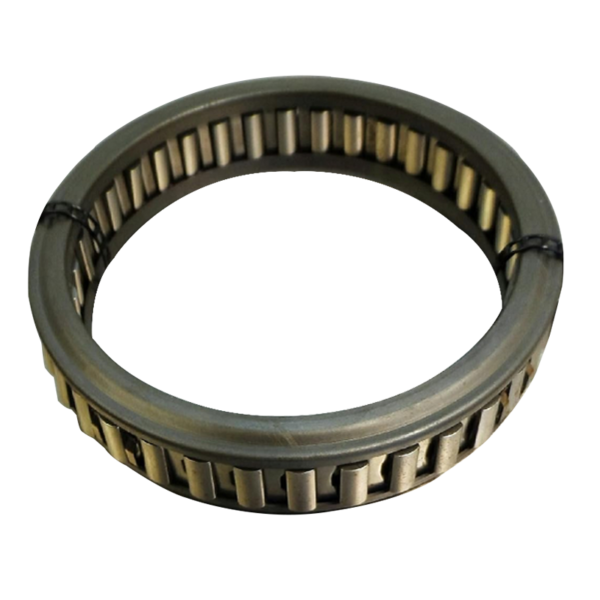

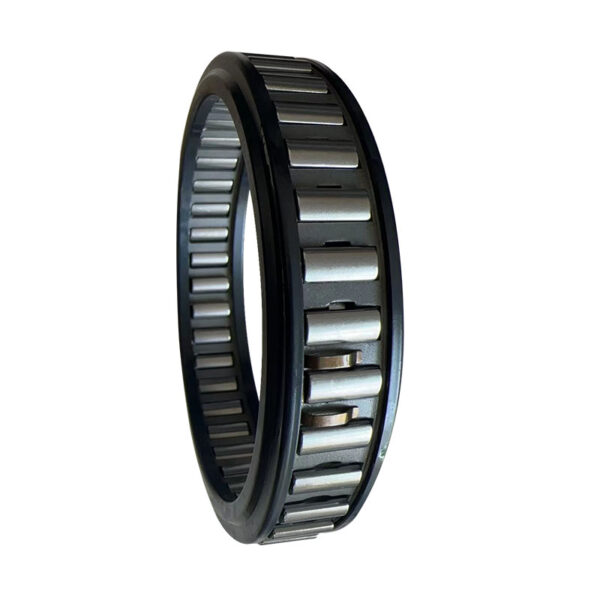

As showcased in our product photography , each component is manufactured from premium wear-resistant alloy steel with sub-micron geometric tolerance control to guarantee 100% drop-in interchangeability with OEM parts. This heavy-duty assembly is the definitive B2B choice for global transmission rebuilders and automotive aftermarket distributors looking to eliminate gear slippage, optimize drivetrain synchronization, reduce MRO expenditures, and secure a zero-defect mechanical parts supply chain.
4T80E DC88104 Clutch Sprag Convert Hydraulic Torque
Are you experiencing harsh gear shifting, unexpected transmission slipping, or premature mechanical failure in your heavy-duty GM 4T80E automatic transaxle?
Many automotive aftermarket remanufacturers and fleet workshop managers fail to realize that standard one-way freewheels cannot handle massive engine torque spikes indefinitely. Under extreme operating pressure, low-grade sprag elements flip sideways or roll over entirely, scratching the internal drum races and leading to costly, unexpected downtime.
This engineering guide explains how upgrading to a premium clutch sprag convert hydraulic torque-4T80E DC88104 DPS90167 assembly secures absolute driving synchronization and fault-free torque multiplication.
Quick Answer
To effectively convert hydraulic torque into reliable mechanical drive power within a GM 4T80E transmission, implementing the upgraded DC88104 clutch sprag alongside the DPS90167 component kit is vital. Engineered with precision-hardened elements and specialized side-thrust washers, this robust mechanical setup eliminates element rollover, accommodates extreme line pressure spikes, and guarantees zero-slip power transfer across all severe cyclic duty cycles.
Why Heavy-Duty 4T80E Sprag Assemblies Fail
-
Fatigued Dual-Cage Strips: Over time, continuous high-vibration stresses degrade the sprag tension cages, resulting in element misalignment.
-
Neglecting Thru-Washer Wear: Reusing old side washers allows the sprag assembly to shift axially, introducing catastrophic asymmetric load distribution.
-
Sub-micron Tolerance Scoring: Micro-pitting on the inner or outer race surfaces prevents the sprag cams from locking up synchronously.
-
Thermal Softening: Extreme transmission temperatures degrade the metallurgical hardness of standard aftermarket components.
Step-by-Step Installation Guide
Step 1: Meticulously Inspect the Inner and Outer Drum Races
Before installing your new DC88104 sprag, check the drum races using a digital micrometer. Ensure the matching surfaces possess a mirror-smooth finish with zero grooves or heat cracks.
Step 2: Set Up the DPS90167 Thrust Washers Correctly
Position the two specialized metal washers included in the DPS90167 kit on both sides of the sprag ring. These rings are critical for managing axial play and ensuring the sprag remains perfectly centered.
Step 3: Verify the Instant Mechanical Locking Direction
Manually spin the internal assembly to ensure it freewheels flawlessly in one direction and locks up solid instantly in the other. Never skip this manual test prior to lowering the internal shaft.
5 Critical Rebuild Mistakes To Avoid
-
Skipping New Thrust Washers: Reusing old washers leads to axial misalignment and premature element wear.
-
Installing the Sprag Ring Upside Down: Causes immediate transmission lockup and catastrophic case damage during testing.
-
Using Improper Assembly Lubricants: Heavy greases can prevent the precision sprag elements from engaging the race surfaces.
-
Failing to Flush the Torque Converter: Leaves metal debris from previous failures that will destroy the new cages.
Case Study: Heavy-Duty Fleet Overhaul
-
Before: A luxury limousine rental fleet utilizing GM 4T80E transaxles faced constant intermediate sprag roll-over failures due to heavy passenger loads and continuous stop-and-go conditions.
-
After: The garage transitioned exclusively to LST DC88104 clutch sprags combined with new DPS90167 matching assemblies.
-
Result: The fleet achieved 100% drivetrain reliability, comfortably passing 140,000 miles of severe service without a single mechanical slip code.
Frequently Asked Questions
Q: What is the benefit of the DC88104 dual-cage design?
The dual-cage setup controls each sprag element individually, guaranteeing that all elements engage the race at the exact same moment to distribute heavy shock loads uniformly.
Q: Can I buy the sprag element without the DPS90167 washers?
While possible, it is highly discouraged. For a reliable 4T80E rebuild, replacing the matching thrust washers is essential to prevent internal axial shifting.
Q: Does LST provide drawing-compliant customization for industrial drivetrain components?
Yes, LST is a professional high-volume OEM/ODM manufacturer. We specialize in producing drawing-compliant one-way clutches, backstops, and bearings with micro-level tolerance control.
Ready to Secure Your Drivetrain Supply Chain?
If your commercial distribution network or transmission remanufacturing facility demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our DC88104 clutch sprags feature premium GCr15 steel elements to keep your business moving forward.
