DC338022 (DC4972C Extended Sprag Clutch) Manufacturer

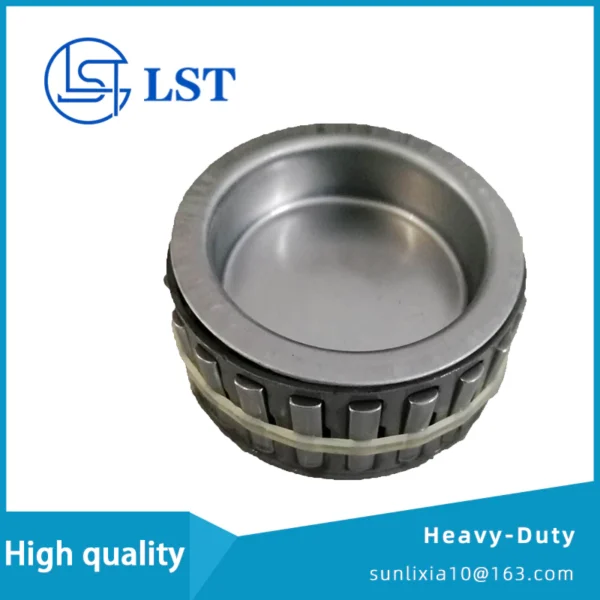

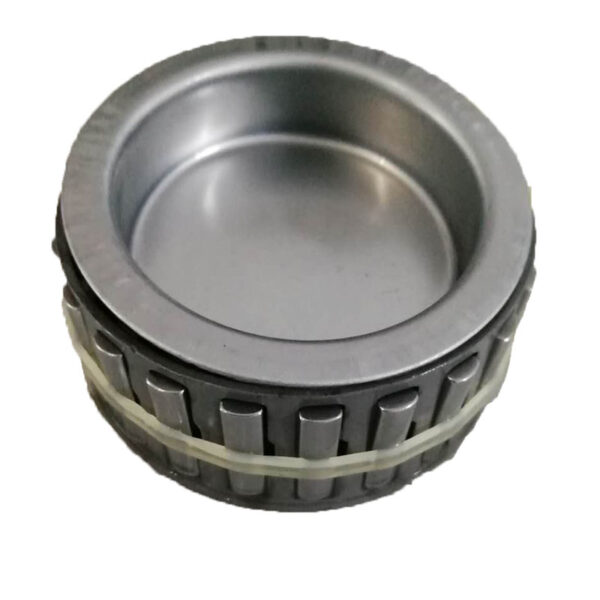

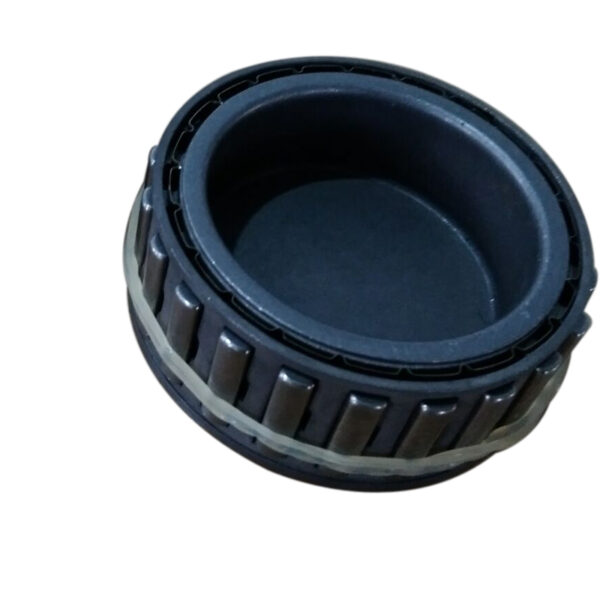

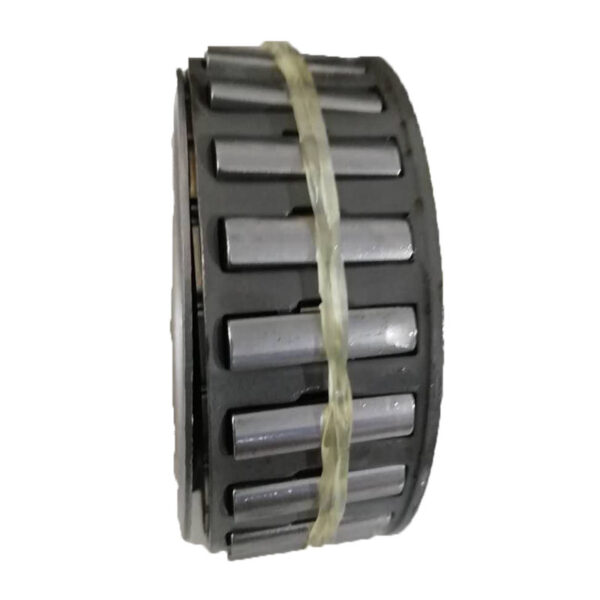

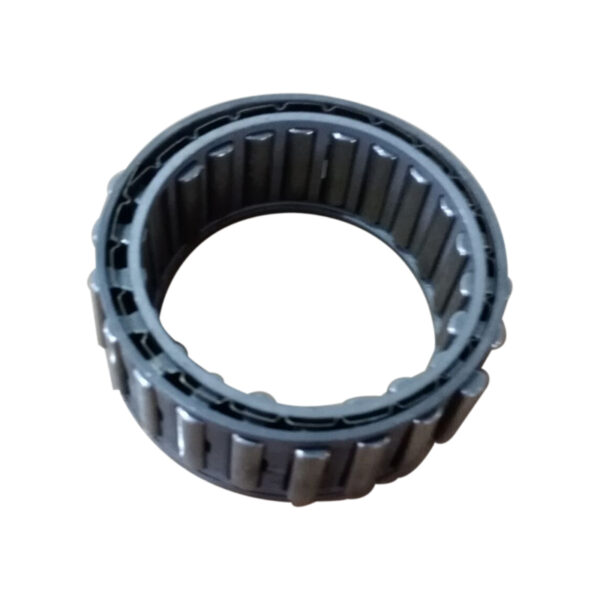

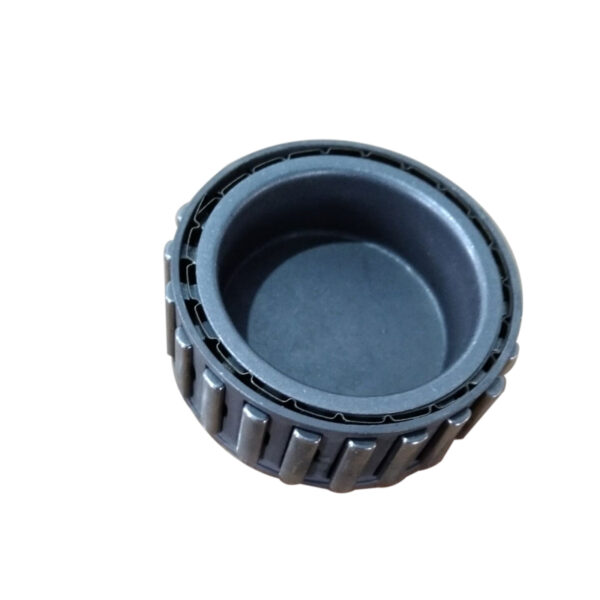

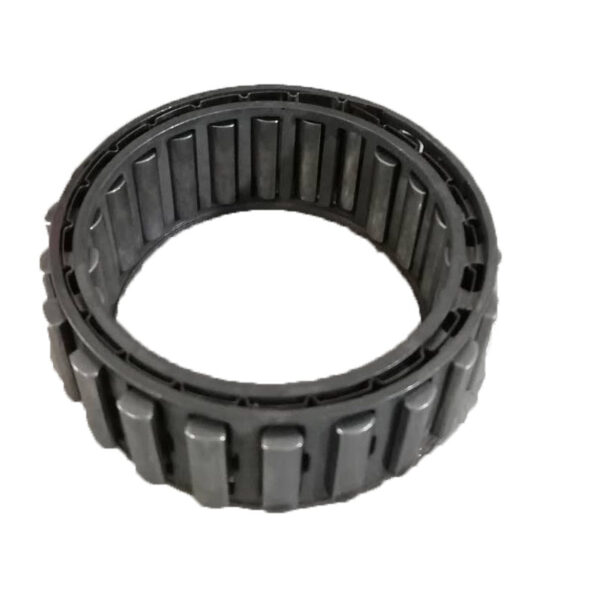

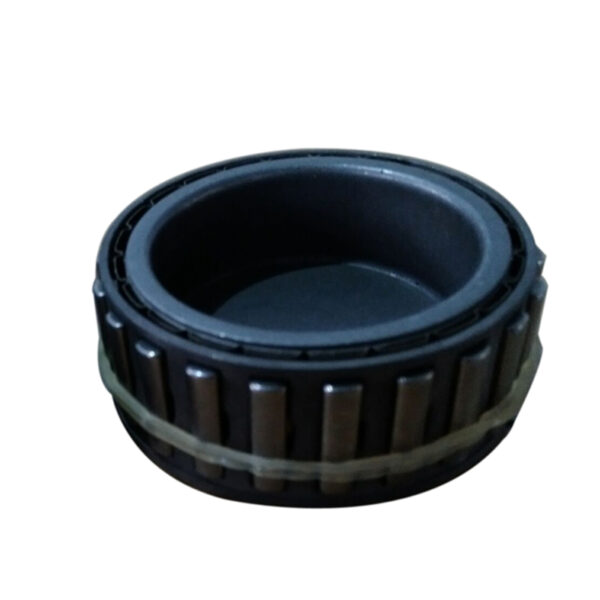

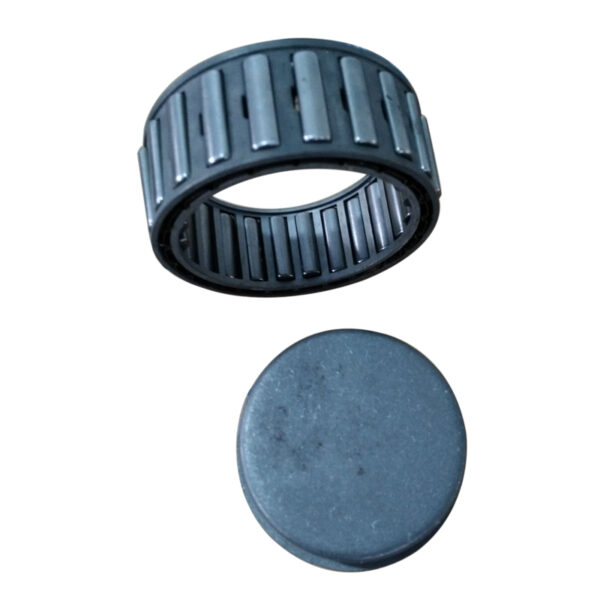

DC338022 Sprag Freewheel Clutch is a customized DC Series one way clutch developed from the DC4972C structure with an extended X-134398C design. It provides reliable one-direction torque transmission, fast engagement response and excellent durability for transmission and mechanical drive applications. LSTO specializes in manufacturing automotive sprag clutch, freewheel clutch and OEM transmission components, offering customized engineering solutions, precision production and stable supply support for global customers.
DC338022 (DC4972C Extended X-134398C) Sprag Freewheel Clutch for High Reliability Transmission Applications
Introduction: What Is DC338022 Sprag Freewheel Clutch?
The DC338022 Sprag Freewheel Clutch is a customized DC Series one way clutch solution, developed based on the DC4972C sprag clutch structure with extended height configuration (X-134398C).
Designed for applications requiring reliable directional torque control, this sprag clutch provides:
- One-direction torque transmission
- Automatic overrunning function
- High engagement reliability
- Long operating service life
Unlike traditional friction clutch systems, the sprag freewheel clutch mechanism uses precision sprag elements to create a mechanical locking effect when torque is applied in the driving direction.
When reverse rotation occurs, the sprags release automatically, allowing free rotation without additional control systems.
The DC338022 is suitable for customers requiring:
- Automatic transmission components
- Gearbox repair solutions
- Torque converter systems
- OEM replacement parts
- Customized transmission assemblies
Product Overview of DC338022
| Item | Specification |
|---|---|
| Model | DC338022 |
| Equivalent Structure | DC4972C Extended Version |
| Additional Reference | X-134398C |
| Product Type | Sprag Freewheel Clutch |
| Series | DC Series |
| Function | One Way Torque Transmission |
| Application | Transmission & Mechanical Drive Systems |
| Customization | OEM Available |
Key Features of DC338022 Sprag Freewheel Clutch
1. Extended DC4972C Design for Special Applications
The DC338022 is developed from the proven DC4972C platform, with an extended structural design to meet specific assembly requirements.
Compared with standard configurations, the extended design provides:
- Better installation adaptability
- Improved component matching
- Flexible integration into customized systems
This makes it suitable for applications where standard sprag clutch dimensions cannot meet engineering requirements.
2. Reliable One Way Torque Transmission
The core function of the DC338022 is efficient directional power transmission.
During drive operation:
- Sprag elements lock between races
- Torque is transferred immediately
- Mechanical connection becomes stable
During overrunning operation:
- Sprags release automatically
- Reverse rotation is allowed
- Unwanted reverse torque is prevented
This working principle makes sprag clutches widely used for overrunning, backstop and indexing applications.
3. High Durability for Continuous Operation
Transmission components require consistent performance under repeated loading conditions.
The DC338022 is manufactured with attention to:
- Material strength
- Dimensional accuracy
- Surface performance
- Assembly consistency
Benefits include:
- Reduced maintenance frequency
- Stable operating performance
- Longer service intervals
Working Principle of DC338022 Sprag Freewheel Clutch
A sprag clutch operates through specially designed wedge-shaped sprag elements positioned between inner and outer races.
Locking Direction
When torque is applied:
- Sprags rotate into the locking position.
- The inner and outer races engage.
- Torque is transferred through mechanical locking.
Freewheel Direction
When rotation changes:
- Sprags release.
- The races rotate independently.
- Reverse torque transmission is eliminated.
This automatic engagement system allows the clutch to operate without external control mechanisms.
Typical Applications of DC338022
The DC338022 Sprag Freewheel Clutch can be integrated into various mechanical systems.
| Application | Requirement | DC338022 Advantage |
|---|---|---|
| Automatic Transmission | Reliable power transfer | Stable engagement |
| Gearbox System | Accurate directional control | High precision |
| Torque Converter Assembly | Overrunning function | Fast response |
| Industrial Drive Equipment | One-way operation | Long service life |
| OEM Replacement Market | Exact component matching | Custom support |
Why Choose LSTO as Your Sprag Clutch Manufacturer?
Selecting a professional sprag clutch manufacturer is essential for transmission reliability.
LSTO specializes in:
- Automotive Sprag Clutch
- DC Series Sprag Freewheel Clutch
- One Way Clutch for Transmission
- Customized transmission components
Manufacturing Capability
LSTO applies professional production processes including:
Precision Machining
Manufacturing processes include:
- CNC machining
- Precision grinding
- Dimensional inspection
- Component assembly
Heat Treatment Control
Proper heat treatment improves:
- Wear resistance
- Mechanical strength
- Operating durability
Quality Inspection
Every production stage focuses on:
- Dimensional consistency
- Functional reliability
- Batch stability
OEM Customization Service
Different transmission systems require different clutch specifications.
LSTO supports customized manufacturing based on:
- Customer drawings
- Existing samples
- OEM specifications
- Application requirements
| OEM Service | Customer Benefit |
|---|---|
| Custom dimensions | Better assembly compatibility |
| Sample reproduction | Faster development |
| Engineering support | Reduced design risk |
| Mass production | Stable supply capability |
Quality Control of DC338022
For precision transmission components, quality consistency directly affects system performance.
| Inspection Process | Purpose | Customer Value |
|---|---|---|
| Material Inspection | Verify raw material properties | Improved durability |
| Dimensional Testing | Confirm machining accuracy | Reliable installation |
| Hardness Testing | Verify heat treatment | Better wear resistance |
| Functional Testing | Confirm clutch operation | Stable performance |
DC338022 Compared With Traditional Clutch Solutions
| Factor | DC338022 Sprag Clutch | Traditional Friction Clutch |
|---|---|---|
| Engagement Method | Mechanical locking | Friction contact |
| Response Speed | Fast | Slower |
| Energy Loss | Low | Higher |
| Maintenance | Lower | Higher |
| Space Requirement | Compact | Larger structure |
How To Select A Reliable Sprag Clutch Supplier?
When sourcing transmission components internationally, buyers should evaluate suppliers through:
Manufacturing Experience
Check:
- Factory production capability
- Quality management system
- Engineering support
- Export experience
Technical Verification
Request:
- Product drawings
- Sample testing
- Inspection records
- Application confirmation
OEM Capability
A reliable supplier should support:
- Customized structures
- Replacement solutions
- Prototype development
- Stable production
FAQ About DC338022 Sprag Freewheel Clutch
What is DC338022 Sprag Freewheel Clutch?
DC338022 is a customized DC Series sprag clutch based on the DC4972C structure with an extended X-134398C configuration for specialized transmission applications.
What is the function of a sprag freewheel clutch?
A sprag freewheel clutch transmits torque in one direction while allowing free rotation in the opposite direction.
Can LSTO produce customized sprag clutch designs?
Yes. LSTO provides OEM manufacturing services based on drawings, samples and customer application requirements.
What industries use sprag freewheel clutches?
Sprag clutches are widely used in automotive transmissions, gearboxes, industrial machinery and mechanical drive systems.
Conclusion
The DC338022 (DC4972C Extended X-134398C) Sprag Freewheel Clutch is a customized one way clutch solution designed for demanding transmission and mechanical applications.
Based on the reliable DC4972C platform, this extended design provides improved installation flexibility, stable torque transmission and dependable operating performance.
With professional manufacturing capability, OEM customization support and strict quality control, LSTO delivers high-quality sprag clutch solutions for global automotive transmission and industrial customers.
Contact the LSTO engineering team for customized drawings, technical evaluation and OEM production support.
