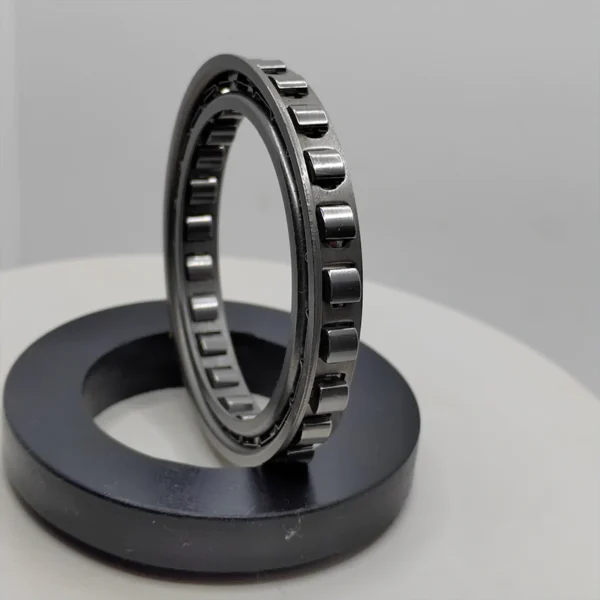

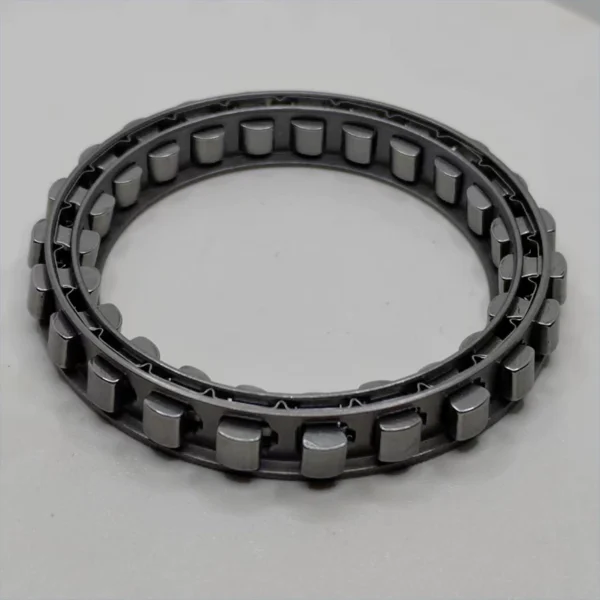

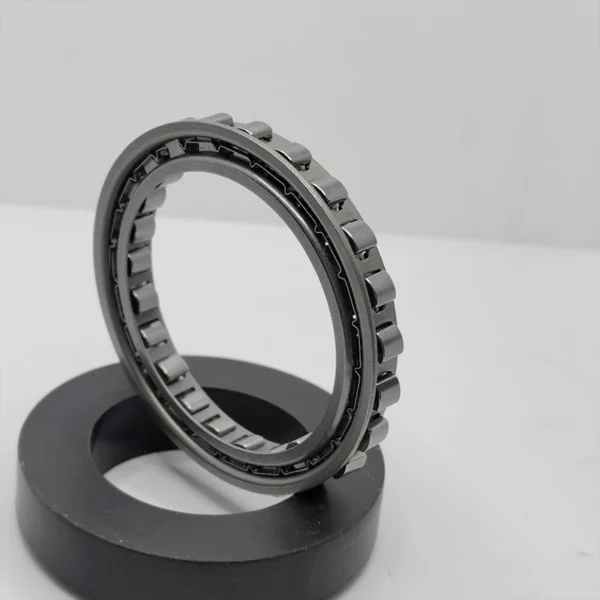

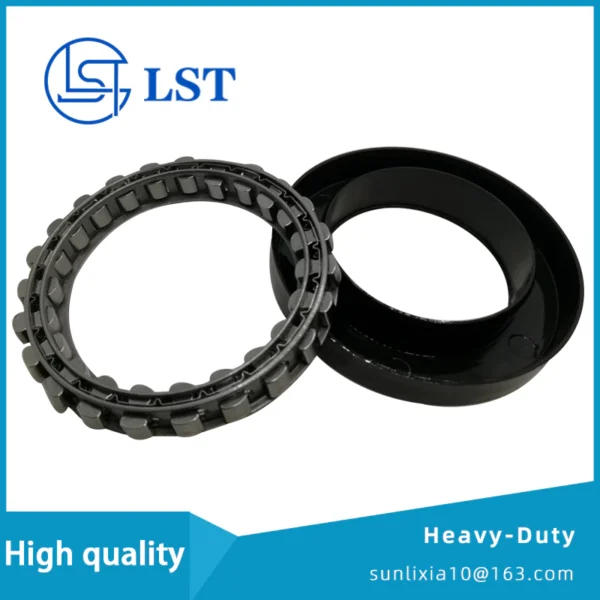

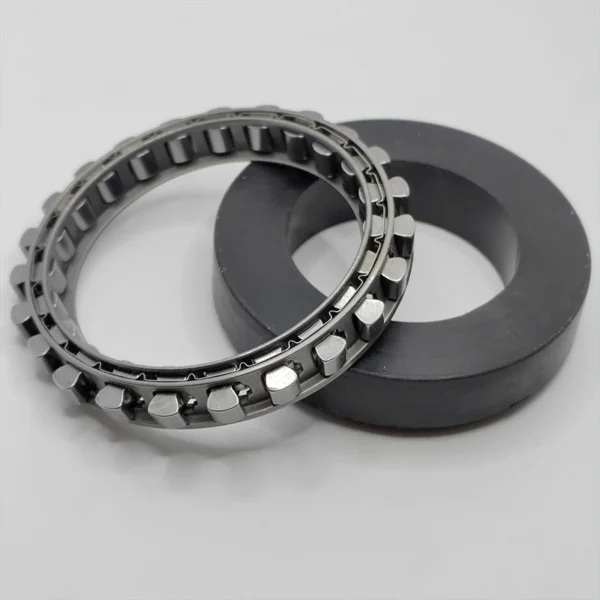

Hydraulic Torque Conversion with One Way Clutch BW-SP-3
LST BW-SP-3 sprag clutch is specifically engineered to optimize hydraulic torque conversion within Volkswagen automatic transmission torque converters. Featuring advanced multi-element cam geometry and a reinforced stabilization cage, this premium one-way freewheel clutch guarantees instant reverse locking and zero-slip mechanical power transfer under high fluid pressure spikes, effectively eliminating transmission shudder and shifting delays.
Manufactured from premium-grade, heat-treated GCr15 bearing steel, it enforces rigid sub-micron geometric tolerance control to deliver 100% drop-in interchangeability with OEM European drivetrain components. It is the ultimate B2B choice for global torque converter rebuilders, automotive aftermarket distributors, and specialized Euro-fleet repair facilities seeking to maximize service life, reduce MRO expenditures, and secure a zero-defect mechanical parts supply chain.
Hydraulic Torque Conversion with One Way Clutch BW-SP-3
Are you experiencing delayed acceleration, harsh shuddering during downshifts, or torque converter clutch (TCC) slip codes in your Volkswagen vehicle?
In precision-engineered European drivetrains like Volkswagen (VW) systems, the overrunning clutch within the torque converter assembly operates under relentless cyclic stress. Many automotive aftermarket remanufacturers mistakenly use standard-duty components that cannot handle continuous hydrodynamic pressure fluctuations. As a result, the sprag elements roll over or slip, leading to fluid contamination, loss of mechanical efficiency, and catastrophic transaxle failure.
This technical guide demonstrates how upgrading to a premium hydraulic torque conversion with one way clutch BW-SP-3 assembly ensures absolute locking synchronization and zero-slip power transfer.
💡 Quick Answer
To effectively optimize hydraulic torque conversion within Volkswagen automatic drivetrains, upgrading to the BW-SP-3 sprag clutch is essential. Specifically engineered for VW torque converters, this heavy-duty assembly features precision-profiled sprag elements that eliminate mechanical slippage under high fluid pressure. The BW-SP-3 delivers instantaneous one-way engagement and superior reverse locking, preventing transmission shudder and safeguarding the drivetrain against premature failure.
Why Volkswagen Torque Converter Sprags Fail
Volkswagen transmissions demand strict mechanical synchronization, making them highly sensitive to inferior components:
-
Asymmetric Cam Engagement: Minor dimensional variations in low-cost sprags cause uneven load distribution, leading to localized stress and cracked cages.
-
Thermal Fatigue from High-Shear Fluid: VW gearboxes operate at high thermal thresholds; standard alloy elements soften rapidly, causing them to skate rather than lock.
-
Hydrodynamic Film Breakdown: Sub-micron wear on matching inner or outer races prevents the sprag cams from biting cleanly into the locking ramps.
Step-by-Step Installation & Inspection Guide
Step 1: Inspect the Torque Converter Stator & Race Concentricity
Before pressing the new BW-SP-3 assembly into place, thoroughly clean the stator shaft and matching races. Use a digital micrometer to check for micro-grooves, scoring, or out-of-round wear.
Step 3: Verify the Precise One-Way Freewheeling Direction
The BW-SP-3 must freewheel flawlessly and silently in one direction and lock up solid instantly in the opposite direction. Manual testing on the bench is mandatory before welding or sealing the torque converter housing.
Step 3: Pre-Lubricate with VW-Specified Transmission Fluid
Never install high-precision internal transmission components dry. Submerge the BW-SP-3 sprag in factory-specified synthetic automatic transmission fluid (ATF) to guarantee immediate hydrodynamic lubrication upon initial vehicle startup.
Recommended Heavy-Duty Transmission Rebuild Tools
| Tool | Why It Helps |
| LST BW-SP-3 VW-Specific Sprag | Features reinforced cages and hardened GCr15 elements tailored for European vehicles. |
| Digital Outside Micrometer | Validates sub-micron race concentricity prior to final installation. |
| Torque Converter Alignment Mandrel | Ensures perfect axial centering of the sprag and stator assembly. |
| Premium Synthetic VW-Approved ATF | Maintains the precise friction coefficient required for instant sprag engagement. |
F
requently Asked Questions
Q: Is the BW-SP-3 sprag universally compatible with all VW transmissions?
The BW-SP-3 is custom-engineered specifically for specialized Volkswagen torque converter configurations. Always verify your inner/outer race dimensions against our drawing-compliant specification sheet before purchasing.
Q: What causes the “shudder” feeling when a torque converter sprag fails?
When the sprag elements slip or skate under load, the transmission struggles to convert hydraulic torque smoothly into mechanical rotation, causing rapid engagement-disengagement cycles felt as a shudder.
Q: Does LST support volume OEM/ODM manufacturing for specialized European parts?
Yes. LST is a professional high-volume manufacturer. We provide drawing-compliant one-way clutches, backstops, and precision bearings with micro-level tolerance control tailored for global automotive and industrial distribution networks.
Ready to Secure Your Drivetrain Supply Chain?
If your automotive distribution network, torque converter remanufacturing facility, or commercial fleet workshop demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our BW-SP-3 sprag clutches feature premium steel elements to keep your business moving forward.
