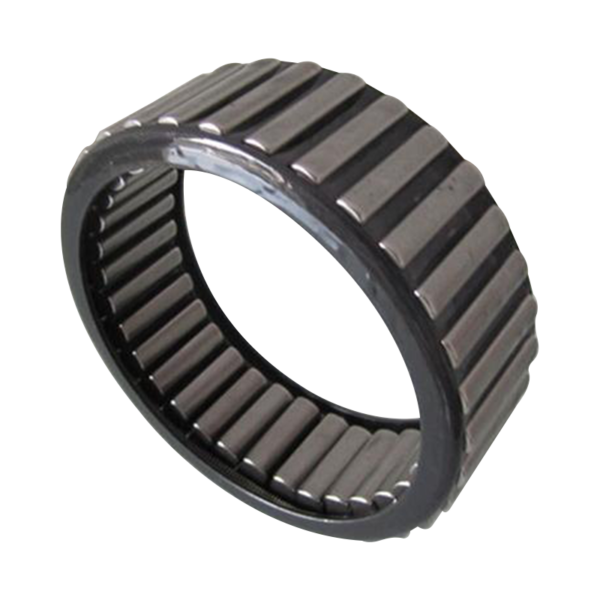

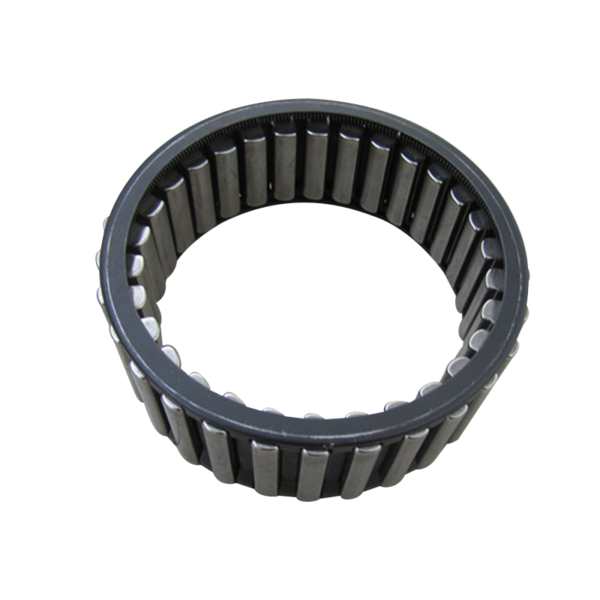

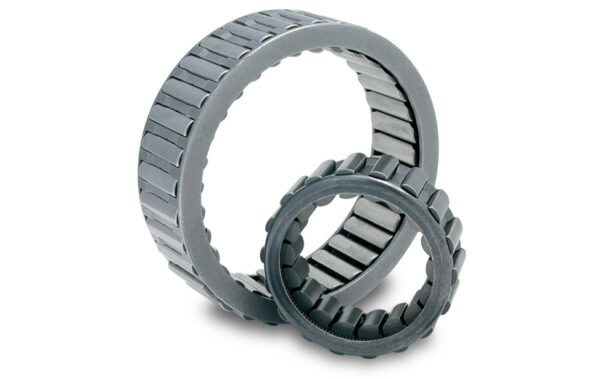

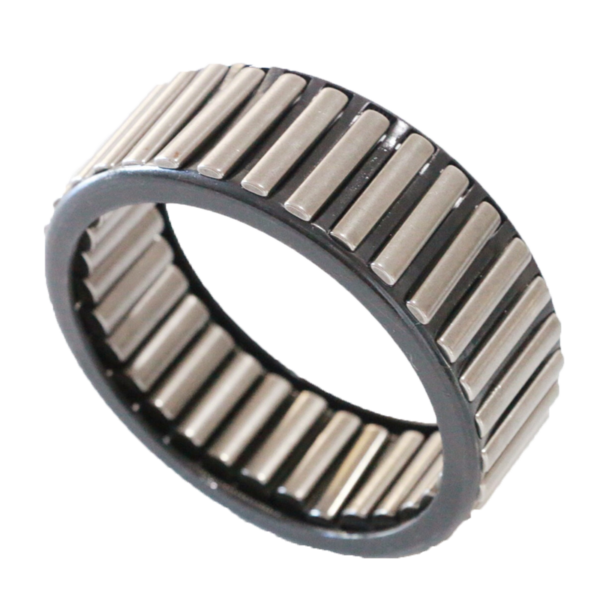

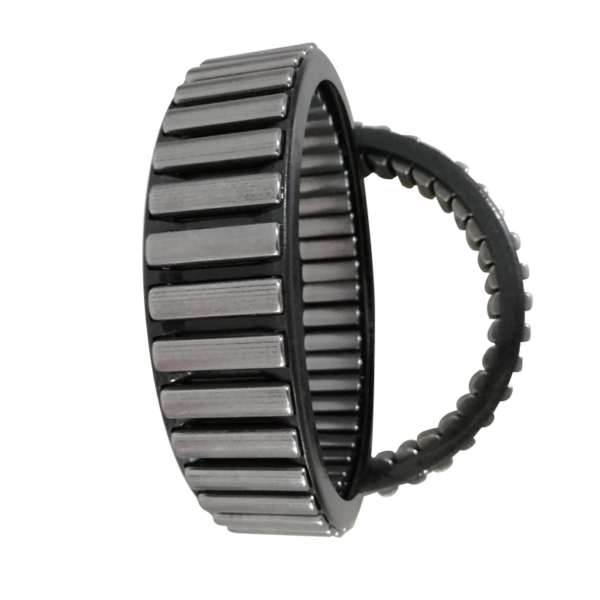

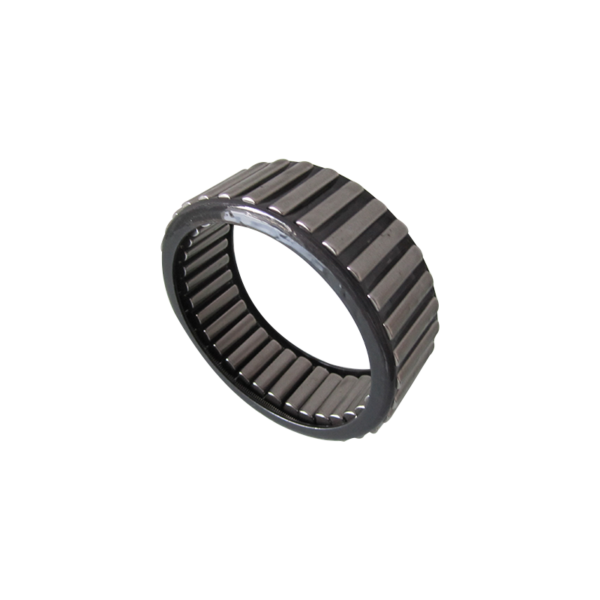

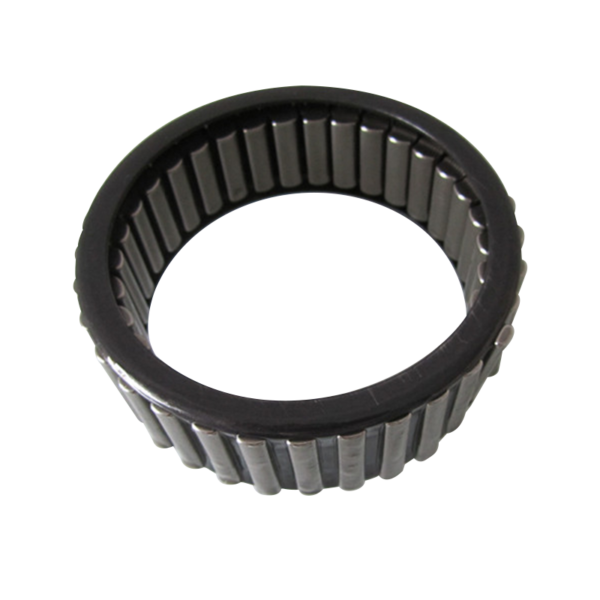

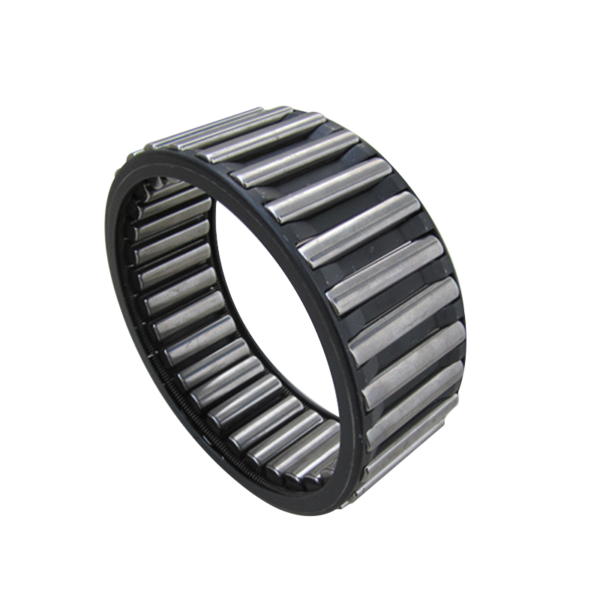

High-Torque Overrunning Sprag Clutch Components: CL Series
LST Heavy-Duty Overrunning Sprag Clutch Components: CL Series
LST CL Series sprag clutch components are precision-engineered to deliver reliable overrunning, backstopping, and indexing performance in high-capacity automotive gearboxes and industrial drivetrains. Spanning multiple high-torque specifications from the compact CL42878 (1,050 N·m) to the ultra-heavy-duty CL42244 (10,000 N·m), this premium freewheel series utilizes an advanced multi-element cam matrix to ensure synchronous element engagement, completely eliminating mechanical slippage, element rollover, and powertrain shudder under sudden peak load acceleration.
Manufactured from high-grade, heat-treated GCr15 bearing steel, the CL Series enforces rigid sub-micron geometric tolerance control to provide 100% drop-in interchangeability with standard OEM automotive transaxles, fluid coupling stators, and industrial housings. It is the definitive B2B choice for global transmission remanufacturers, MRO distribution networks, and machinery builders seeking to minimize maintenance expenditures, prevent unexpected breakdown downtime, and secure a zero-defect mechanical parts supply chain.
High-Torque Overrunning Sprag Clutch Components: CL Series
Are you facing critical drivetrain power loss, severe mechanical vibration under heavy cyclic stress, or catastrophic freewheel slippage in your automotive transaxles or industrial gearboxes?
In high-capacity automotive engineering and heavy-duty mechanical drivetrains, the overrunning clutch acts as the ultimate gatekeeper for torque multiplication and synchronization. Relying on standard-grade single-cage components under peak loads often leads to devastating results: sprag elements tilt out of alignment, alloy cages warp under extreme thermal stress, and the clutch “skates” across the races instead of locking instantly. This leads to severe fluid contamination, gear teeth damage, and expensive, unscheduled equipment downtime.
This technical guide demonstrates how upgrading to the premium CL Series heavy-duty overrunning sprag clutch series secures absolute synchronization and zero-slip performance across multiple precise dimensional metrics.
💡 Quick Answer
To effectively eliminate power loss and safeguard heavy-duty automotive and industrial drivetrains against mechanical slippage, integrating the precision-engineered CL Series sprag clutch components is paramount. Built for exceptional torque capacities ranging from 1,050 N·m up to 10,000 N·m, this series utilizes advanced cam geometry to ensure synchronized element engagement. The CL Series delivers instantaneous one-way locking and superior resistance to extreme torsional fatigue, maximizing system longevity and power transfer efficiency.

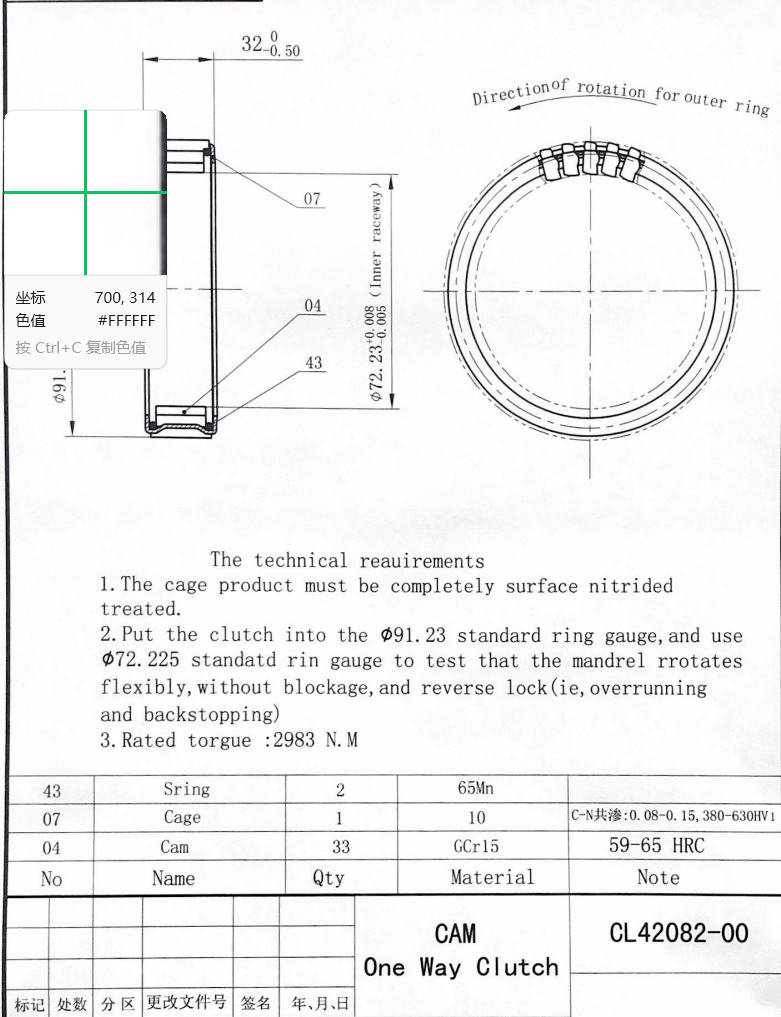

CL Series Engineering Specifications & Dimensions
To meet exact drawing-compliant replacement and upgrade needs for global distributors and fleet workshops, the CL Series provides a comprehensive, micro-level dimension matrix:
Technical Advantages of the CL Series Design
The CL Series is engineered to withstand extreme shock loads and relentless high-shear operational cycles:
-
Synchronized Multi-Element Matrix: Every model enforces uniform cam alignment, allowing the clutch to distribute massive torque loads simultaneously and preventing individual element rollover.
-
Premium GCr15 Metallurgy: Advanced vacuum-degassed bearing steel undergoes multi-stage heat treatment to maintain high surface hardness and exceptional bite even under extreme thermal thresholds.
-
Precise Micron-Level Tolerances: Tailored for complex automotive automatic transaxles, heavy industrial gearboxes, and fluid coupling stators requiring zero backlash.
Step-by-Step Installation & Inspection Protocol
Step 1: Execute Sub-Micron Race Auditing
Before pressing the new CL Series sprag assembly into its housing, thoroughly clean and flush the matching races. Use a digital outside micrometer to verify that sub-micron concentricity tolerances are completely intact.
Step 2: Confirm Instant Mechanical Lockup Orientation
Manually test the sub-assembly on the bench. The CL Series clutch must freewheel seamlessly and silently with minimal drag torque in its designated direction and lock up solid instantly in the opposite direction.
Frequently Asked Questions
Q: Which model should I choose for ultra-high torque commercial applications?
For ultra-high torque requirements, the CL42244 delivers up to 10,000 N·m of rated torque capacity within a precise 158.32mm * 190.00mm * 61mm engineering envelope, making it ideal for heavy commercial drivetrains.
Q: Are the CL Series clutches directly interchangeable with OEM automotive components?
Yes. Every model in the CL Series is manufactured to drawing-compliant specifications, ensuring 100% drop-in interchangeability with major factory gearboxes, transaxles, and fluid coupling configurations.
Q: Does LST provide customized manufacturing for large-scale B2B distribution?
Yes. LST is a professional high-volume OEM/ODM manufacturer. We specialize in producing drawing-compliant one-way clutches, backstops, and precision bearings with micro-level tolerance control to secure global B2B supply chains.
Free Heavy-Duty Drivetrain Rebuild Blueprint
Download our technical manual and get:
-
✅ CL Series Rotational Direction & Custom Element Alignment Charts
-
✅ Sub-micron Race Tolerance and Wear Specification Blueprints
-
✅ Fluid Pressure Dynamics and Lubrication Troubleshooting Guide
-
✅ Automotive & Industrial Transmission Components OEM Cross-Reference Sheet
Ready to Secure Your Drivetrain Supply Chain?
If your commercial distribution network, automotive remanufacturing plant, or fleet MRO workshop demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our CL Series sprag clutches feature premium steel elements to keep your business moving forward.
