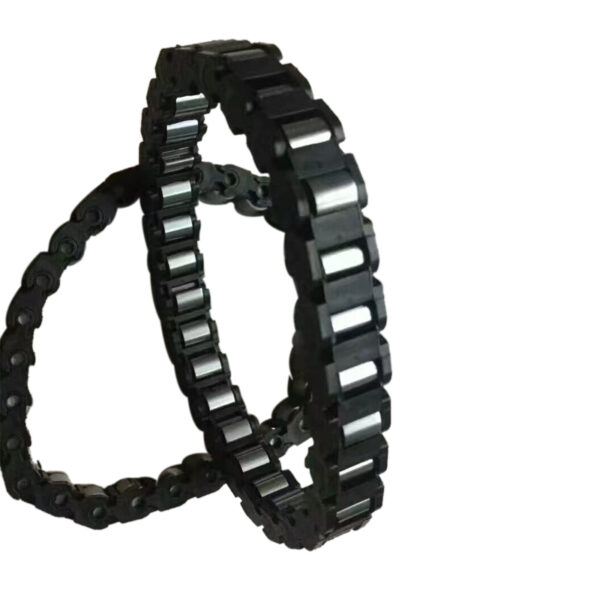

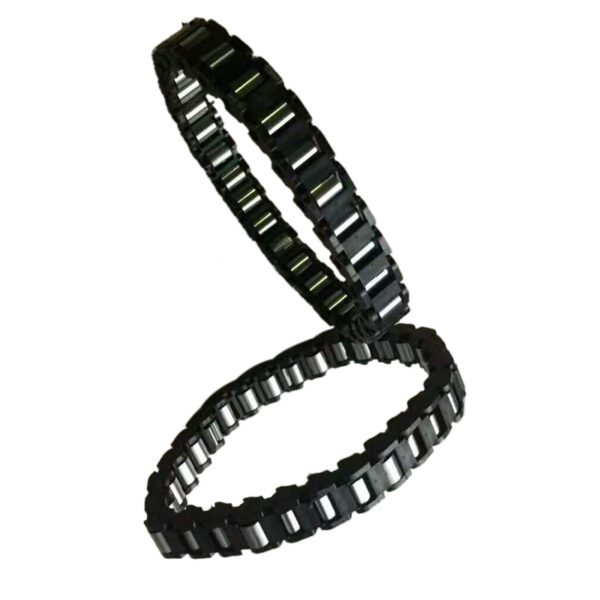

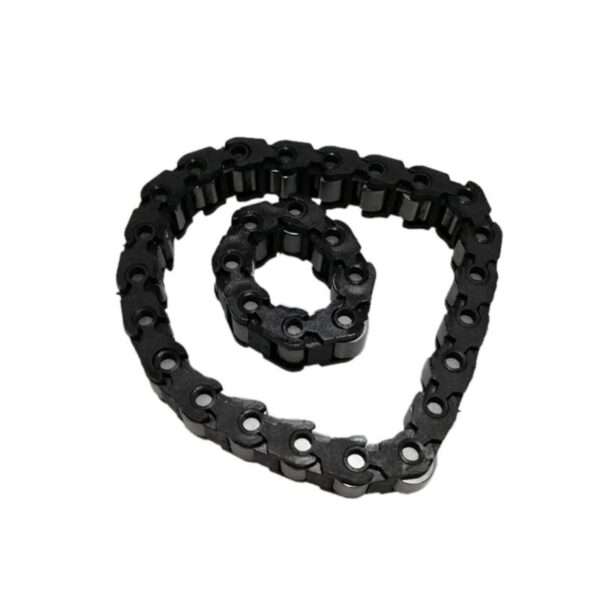

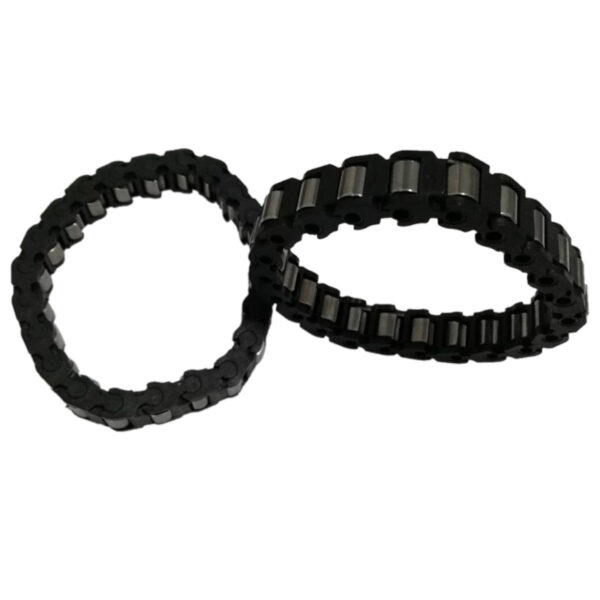

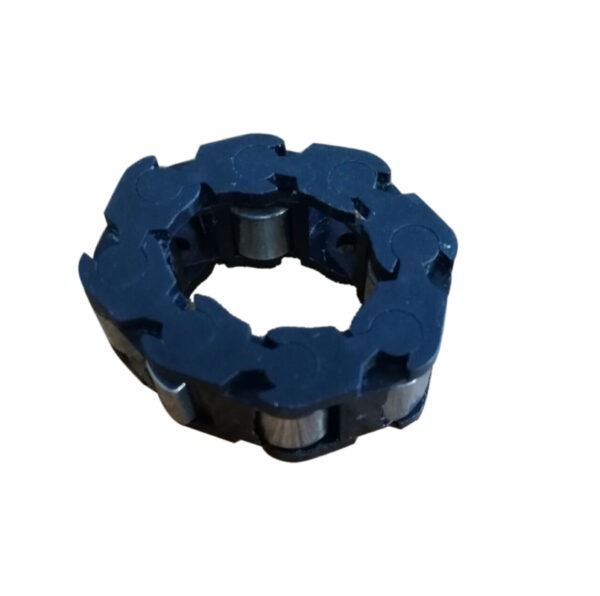

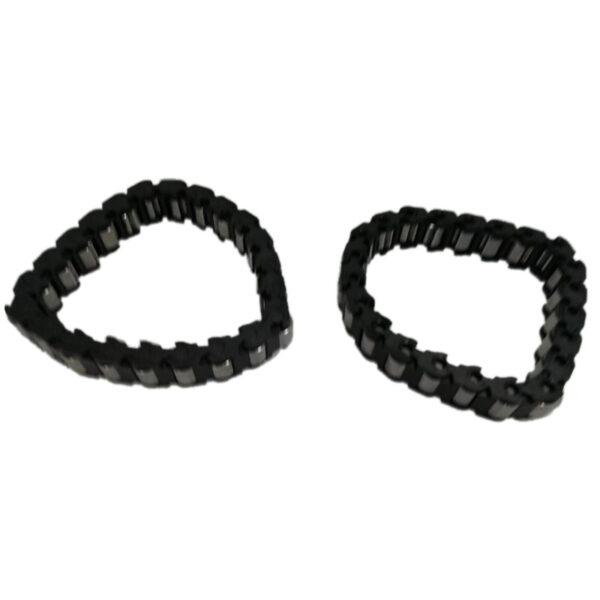

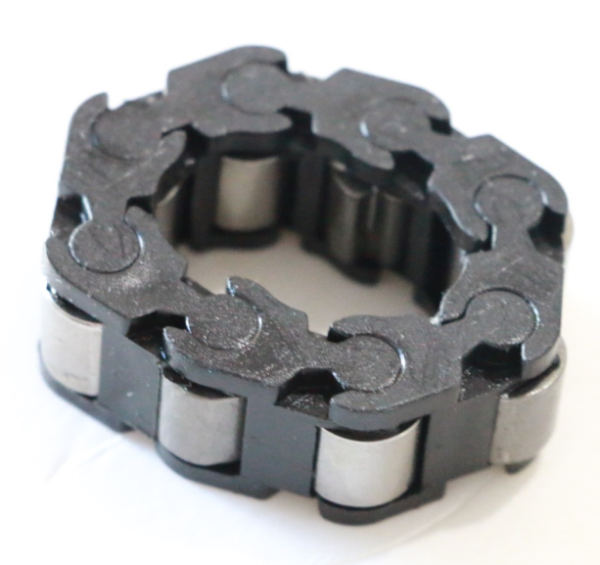

Adjustable Chain Sprag Clutch | Automotive One Way Clutch
Adjustable Chain Sprag Clutch is a customized automotive one way clutch designed for flexible transmission system applications. Featuring adjustable chain length structure and precision sprag locking technology, it provides reliable torque transmission, smooth overrunning operation and reverse rotation protection. This solution is ideal for automotive transmission components requiring compact installation and customized dimensions. LSTO specializes in OEM sprag clutch manufacturing, customized design and global supply of high-quality one-way clutch components.
Adjustable Chain Sprag Clutch | Custom Automotive One Way Freewheel Clutch
Introduction: What Is Adjustable Chain Sprag Clutch?
The Adjustable Chain Sprag Clutch is a customized automotive DC Series one way clutch solution designed for mechanical transmission systems requiring flexible installation length, compact structure and reliable directional control.
Unlike standard fixed-size sprag clutches, this chain-type design allows engineers to adjust the effective clutch length according to different transmission layouts and vehicle application requirements.
The main functions include:
- One-way torque transmission
- Overrunning operation
- Reverse rotation prevention
- Transmission direction control
Using precision sprag locking technology, the clutch automatically engages in the driving direction and releases during overrunning operation.
This design provides:
- Fast response
- High torque efficiency
- Reduced mechanical impact
- Long service life
DC type sprag freewheels are widely used for backstop, overrunning and indexing applications in industrial and transmission systems.
Product Overview
| Item | Specification |
|---|---|
| Product Type | Adjustable Chain Sprag Clutch |
| Series | DC Automotive Sprag Clutch |
| Structure | Chain Type Adjustable Sprag Assembly |
| Function | One Way Transmission |
| Application | Automotive Components |
| Locking Method | Sprag Wedge Locking |
| Design | Custom Adjustable Length |
| Installation | Transmission System |
| Manufacturing | OEM Customized |
Working Principle of Adjustable Chain Sprag Clutch
1. Driving Direction Locking
When the engine or transmission system provides driving torque:
- Input rotation activates sprag elements.
- Sprags move into wedge locking position.
- Inner and outer raceways become connected.
- Torque is transmitted efficiently.
Advantages:
- Instant engagement
- High torque transfer efficiency
- Stable mechanical connection
2. Reverse Direction Freewheel
When the driven component rotates faster:
- Sprag elements release.
- Clutch enters overrunning mode.
- Reverse torque is eliminated.
- Transmission components are protected.
This helps reduce:
- Shock loading
- Gear impact
- Mechanical wear
Key Features of Adjustable Chain Sprag Clutch

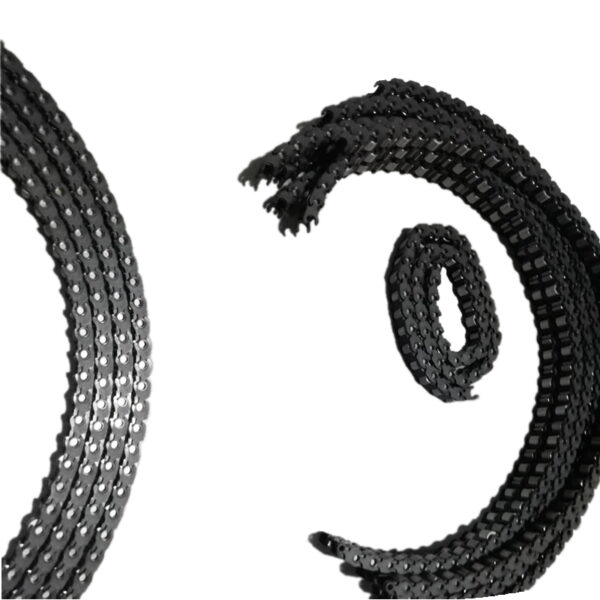

1. Adjustable Length Design
The biggest advantage of this product is the flexible chain-type structure.
Compared with traditional fixed sprag clutches:
| Feature | Adjustable Chain Sprag Clutch | Standard Sprag Clutch |
|---|---|---|
| Length | Adjustable | Fixed |
| Installation Flexibility | High | Limited |
| Customization | Easy | Medium |
| Space Adaptability | Excellent | Normal |
This design helps automotive engineers solve:
- Limited installation space
- Different transmission layouts
- Customized vehicle structures
2. Automotive Grade One Way Transmission
Automotive systems require:
- High reliability
- Continuous operation
- Low maintenance
- Accurate torque transmission
Adjustable chain sprag clutch provides:
| Requirement | Solution |
|---|---|
| Fast engagement | Sprag locking mechanism |
| Reverse protection | One-way operation |
| Long lifespan | Hardened precision components |
| Stable performance | Uniform load distribution |
3. Compact Mechanical Structure
Compared with electromagnetic or friction clutches:
Advantages:
- No electrical control required
- Compact installation
- Low energy consumption
- High mechanical efficiency
Application Areas
Automotive Transmission Systems
Possible applications:
| Application | Function |
|---|---|
| Automatic Transmission | One-way torque control |
| Hybrid Vehicle System | Power direction management |
| Starter Drive System | Reverse protection |
| Engine Auxiliary System | Overrunning control |
| Gearbox Components | Transmission optimization |
Industrial Applications
Although designed for automotive applications, adjustable sprag clutch technology can also be applied in:
| Industry | Application |
|---|---|
| Automation Equipment | Direction control |
| Mechanical Drive Systems | One-way transmission |
| Special Machinery | Custom power transmission |
| Robotics Equipment | Motion control |
Why Automotive Manufacturers Choose Custom Sprag Clutch?
Modern vehicle systems increasingly require:
Compact Packaging
Vehicle transmission spaces are limited.
Customized chain design allows:
- Flexible dimensions
- Better installation compatibility
- Reduced redesign cost
High Reliability
Sprag clutch technology provides:
- Mechanical locking
- Fast response
- Long operating life
OEM Customization Capability
Professional suppliers can provide:
- Drawing-based production
- Sample development
- Dimension adjustment
- Performance testing
Manufacturing Capability of LSTO
LSTO specializes in:
- Automotive Sprag Clutch
- DC Series Freewheel Clutch
- One Way Transmission Components
- Customized Transmission Parts
Production processes include:
Precision Machining
- CNC processing
- Heat treatment
- Surface finishing
- Precision assembly
Quality Inspection
| Inspection | Purpose |
|---|---|
| Dimension Testing | Ensure installation accuracy |
| Hardness Testing | Improve durability |
| Torque Testing | Verify locking performance |
| Life Testing | Confirm reliability |
OEM Custom Development Process
For automotive customers:
Step 1: Application Analysis
Provide:
- Vehicle model
- Installation position
- Torque requirements
- Speed requirements
Step 2: Engineering Design
LSTO evaluates:
- Sprag quantity
- Chain length
- Structural strength
- Material selection
Step 3: Prototype Testing
Testing includes:
- Torque performance
- Locking direction
- Overrunning performance
- Durability testing
Step 4: Mass Production
Provide:
- Stable supply
- Consistent quality
- OEM packaging
Adjustable Chain Sprag Clutch vs Traditional Clutch
| Comparison | Adjustable Chain Sprag Clutch | Friction Clutch |
|---|---|---|
| Transmission Method | Mechanical wedge locking | Friction plates |
| Response Speed | Instant | Slower |
| Energy Loss | Low | Higher |
| Maintenance | Low | Higher |
| Customization | Excellent | Limited |
FAQ About Adjustable Chain Sprag Clutch
What is an adjustable chain sprag clutch?
An adjustable chain sprag clutch is a customized one-way clutch using sprag locking technology with adjustable length capability for flexible installation.
What are the advantages of chain type design?
Main advantages:
- Flexible length adjustment
- Easy installation
- Custom transmission layout compatibility
- Reduced engineering modification
What applications use automotive sprag clutches?
Typical applications:
- Transmission systems
- Engine auxiliary drives
- Hybrid power systems
- Vehicle mechanical components
Can LSTO customize different lengths?
Yes. LSTO provides OEM customized sprag clutch solutions according to:
- Drawings
- Samples
- Vehicle application requirements
Conclusion
The Adjustable Chain Sprag Clutch is an innovative automotive one-way clutch solution designed for applications requiring flexible dimensions, reliable torque transmission and compact installation.
Through precision sprag locking technology, it provides fast engagement, smooth overrunning performance and excellent durability for automotive transmission systems.
LSTO specializes in manufacturing Automotive Sprag Clutch, DC Series Freewheel Clutch and Customized One Way Transmission Components, providing OEM engineering support and global supply solutions.
