Precision Overrunning and Torque Transfer with Sprag Clutch DC12334

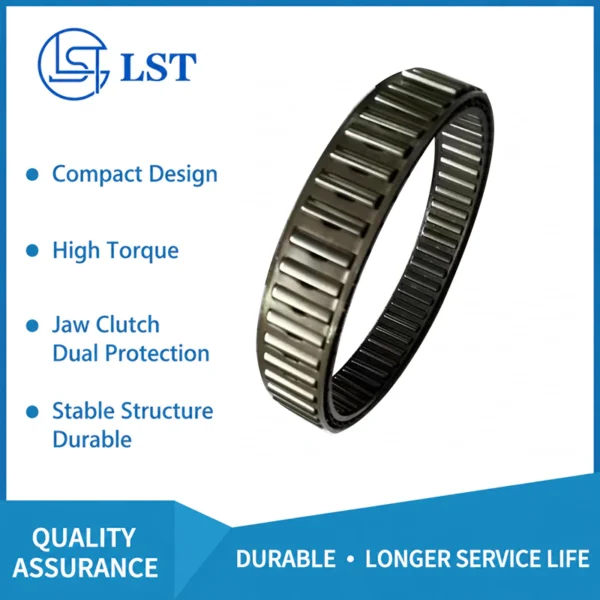

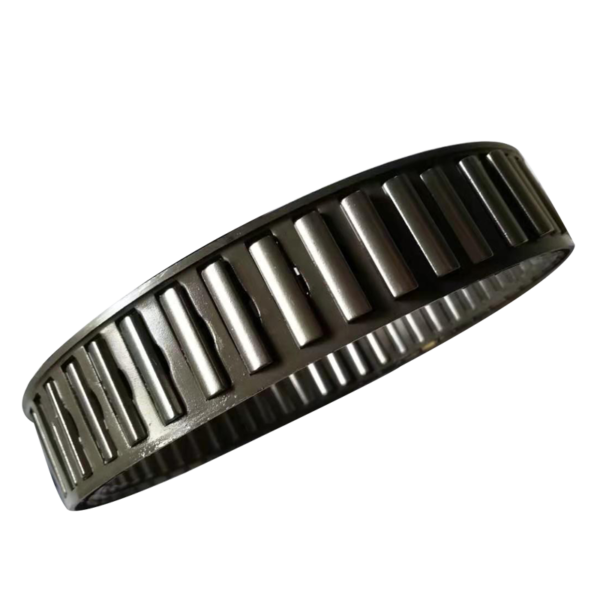

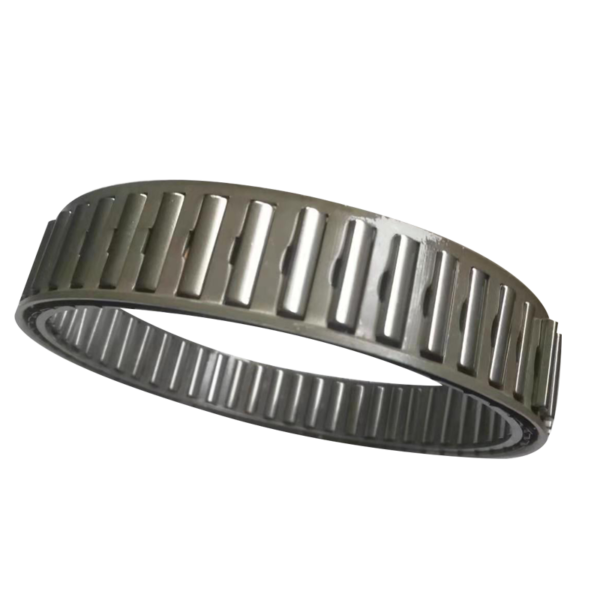

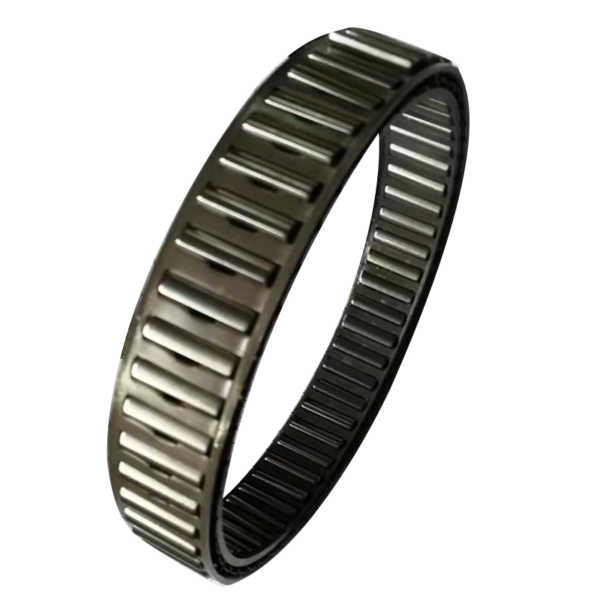

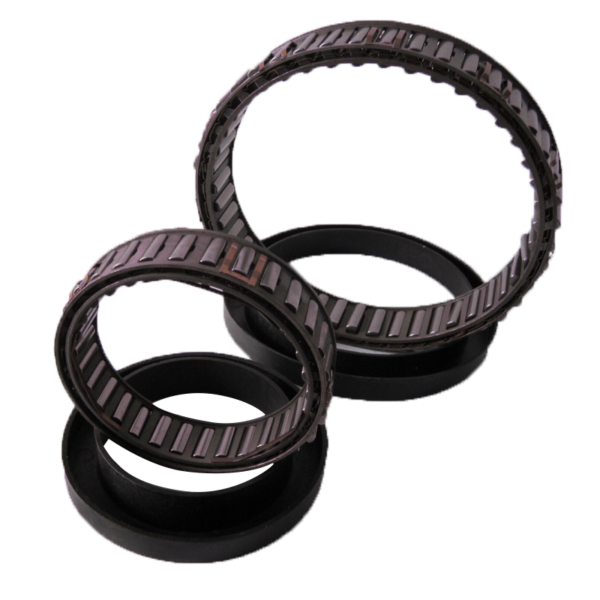

LST Double-Cage Overrunning Sprag Clutch DC12334 (X-133402)
LST DC12334 (system reference X-133402) double-cage sprag clutch assembly is precision-engineered to deliver reliable overrunning, backstopping, and indexing performance in both heavy-duty automotive drivetrains and industrial machinery. Featuring an advanced dual-cage stabilization matrix, this premium freewheel component guarantees synchronous element engagement and maximized torque-bearing efficiency, completely eliminating mechanical slippage and element rollover under peak cyclic loading.
Manufactured from high-grade, heat-treated GCr15 bearing steel, the DC12334 enforces rigid sub-micron geometric tolerance control to provide 100% drop-in interchangeability with standard OEM races and housings. Designed for maximum wear resistance and high-speed freewheeling efficiency, it is the definitive B2B choice for global transmission remanufacturers, MRO distribution networks, and industrial equipment builders seeking to minimize maintenance expenditures, prevent unexpected downtime, and secure a zero-defect mechanical parts supply chain.
Precision Overrunning and Torque Transfer with Sprag Clutch DC12334
Are you confronting critical power loss, severe mechanical vibrations during high-load acceleration, or unexpected freewheel slippage in your high-torque automotive transmissions or industrial drive mechanisms?
In high-capacity power transmission environments, the one-way clutch acts as the core synchronizing gatekeeper. Many automotive aftermarket distributors and fleet MRO managers mistakenly rely on standard-grade, single-cage freewheels that lack sufficient torque capacity and structural stability. Under continuous thermal stress, intense fluid pressure fluctuations, or extreme torque spikes, low-grade sprag elements undergo premature rollover or structural skate. This causes severe friction wear, metal contamination in the oil circuit, rapid race scoring, and ultimately, costly equipment downtime.
This comprehensive technical guide explores how migrating to a premium precision overrunning and torque transfer with sprag clutch DC12334 (system reference X-133402) featuring an optimized double-cage heavy-duty profile stabilizes drivetrain power transfer and guarantees zero-slip operation.
💡 Quick Answer
To effectively convert high-velocity torque into stable, unidirectional mechanical drive power under extreme shock loads, deploying the upgraded DC12334 / X-133402 sprag clutch assembly is essential. Featuring an advanced Double Cage (DC) stabilization matrix, this premium component ensures that every single sprag element engages and disengages synchronously. This design uniformly distributes massive shock forces, completely eliminating mechanical backlash, preventing element rollover, and guaranteeing instantaneous reverse locking across all severe operational cycles.
Technical Advantages of the DC12334 / X-133402 Double-Cage Design
The DC12334 X-133402 is manufactured to rigid drawing-compliant specifications, offering distinct structural upgrades over standard aftermarket components:
-
Synchronized Dual-Cage Matrix: The inner and outer steel cages work in perfect tandem to keep the sprag elements uniformly aligned. This prevents asymmetric engagement and ensures all cams bite into the races at the exact same millisecond.
-
High-Capacity Shock Load Distribution: The double-cage framework forces all precision cams to share torque loads simultaneously. This prevents individual sprags from tilting or collapsing under sudden direction changes or high acceleration spikes.
-
Premium GCr15 Steel Metallurgy: Advanced vacuum-degassed bearing steel undergoes multi-stage heat treatment to maintain a high-hardness mechanical “bite” under extreme thermal thresholds and heavy cyclic stress.
Step-by-Step Installation & Inspection Protocol
Step 1: Execute Sub-Micron Race Auditing
The DC12334 X-133402 operates without built-in bearings, meaning perfect race alignment and concentricity are mandatory. Before installation, thoroughly clean the mating inner hub and outer drum races. Use a digital outside micrometer to verify sub-micron tolerances and ensure the surfaces are free of microscopic scoring, thermal cracking, or flat spots.
Step 2: Confirm Instant Mechanical Lockup Orientation
Manually test the sub-assembly on the bench. The DC12334 must freewheel seamlessly and silently with minimal drag torque in its designated direction and lock up solid instantly in the opposite direction. Verify that the dual-cage orientation matches your system’s overrunning requirements prior to final casing enclosure.
Step 3: Implement Immediate Hydrodynamic Lubrication
Never assemble high-precision drivetrain components dry. Completely submerge the double-cage assembly in the specified high-grade synthetic transmission fluid or industrial lubricating oil to guarantee a protective hydrodynamic layer is active from the very first rotation cycle.
Recommended Heavy-Duty Overhaul Components
Frequently Asked Questions
Q: What primary industries and platforms utilize the DC12334 X-133402 sprag clutch?
The DC12334 is highly versatile, widely integrated into automotive automatic transaxles, heavy-duty industrial gearboxes, packaging machinery indexing units, and high-load material handling conveyor backstops.
Q: Can the DC12334 directly replace standard OEM one-way clutches?
Yes, it is engineered for 100% drop-in interchangeability with matching industrial and automotive housings, providing a heavy-duty upgrade to standard-height configurations that fail under severe stress.
Q: Does LST support drawing-compliant customization for non-standard applications?
Yes. LST is a professional high-volume OEM/ODM manufacturer. We specialize in producing drawing-compliant one-way clutches, backstops, and precision bearings with micro-level tolerance control to secure global B2B supply chains.
Free Heavy-Duty Drivetrain Rebuild Blueprint
Download our technical manual and get:
-
✅ DC12334 Rotational Direction & Element Alignment Chart
-
✅ Sub-micron Race Tolerance and X-133402 Wear Specification Guide
-
✅ Fluid Dynamic Optimization and Troubleshooting Blueprint
-
✅ Power Transmission Components OEM Cross-Reference Sheet
Ready to Secure Your Drivetrain Supply Chain?
If your commercial distribution network, industrial remanufacturing plant, or fleet workshop demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our DC12334 / X-133402 sprag clutches feature premium steel elements to keep your business moving forward.
