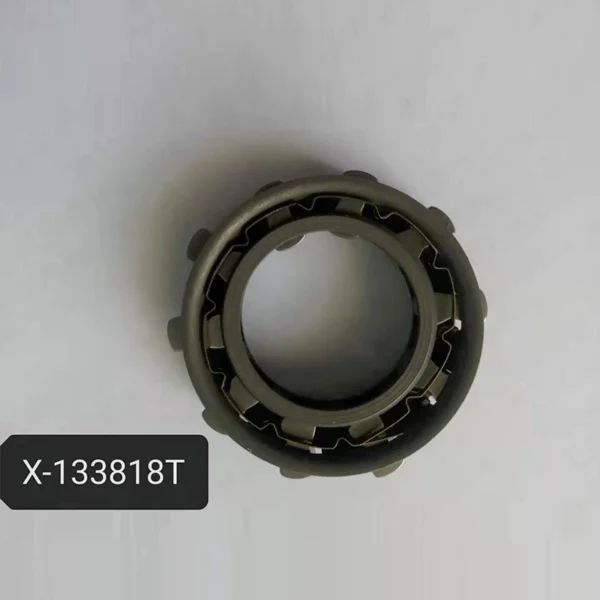

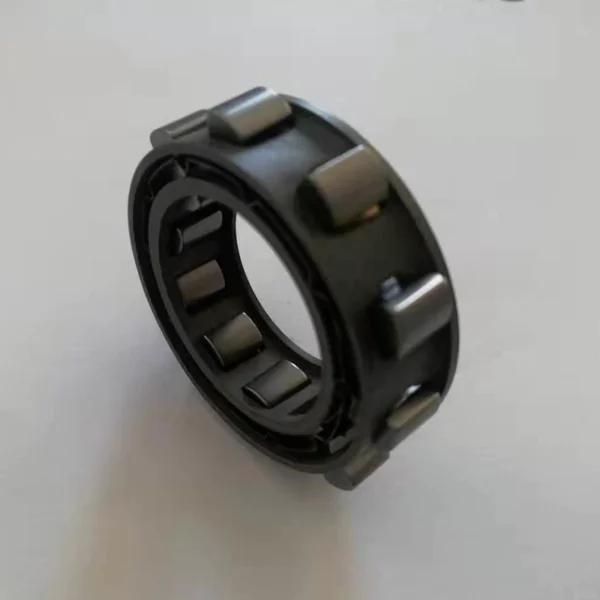

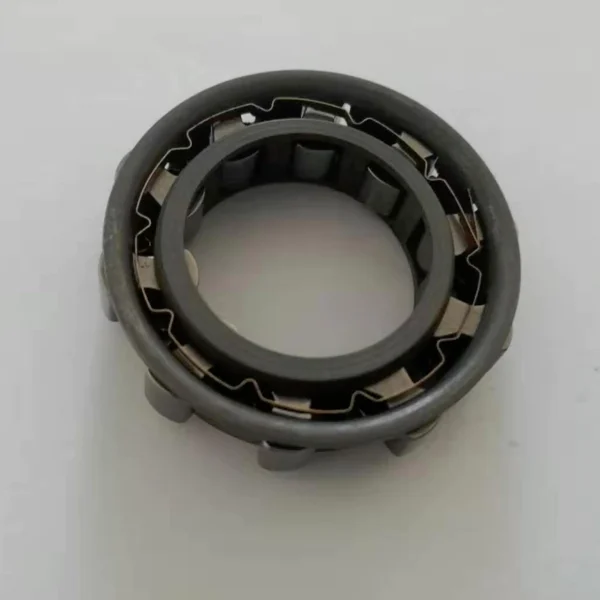

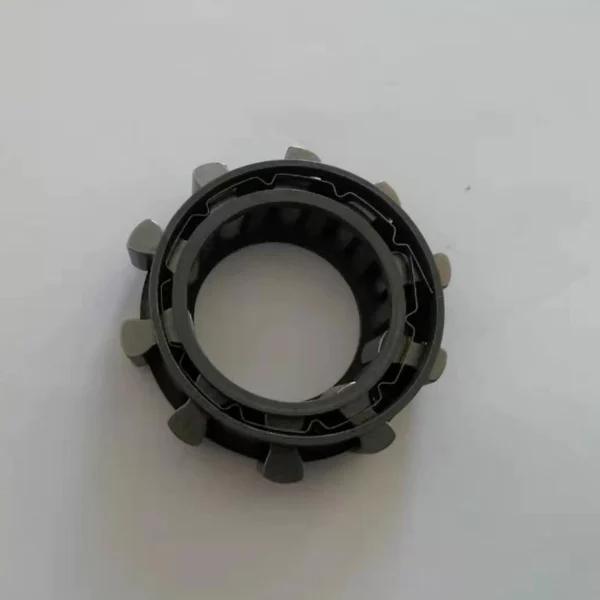

X-133818T Sprag Clutch | Industrial One Way Clutch
X-133818T Sprag Clutch is a compact X Series one way freewheel clutch designed for industrial and automotive transmission applications. Featuring a 20.345mm inner diameter, 37.008mm outer diameter and 10mm width, it provides reliable one-direction torque transmission, fast locking response and smooth overrunning performance. With precision sprag technology and compact design, X-133818T is suitable for automation equipment, mechanical drives and transmission systems. LSTO provides professional sprag clutch manufacturing, OEM customization and global supply solutions.
X-133818T Sprag Clutch | Compact X Series One Way Freewheel Clutch
Introduction: What Is X-133818T Sprag Clutch?
The X-133818T Sprag Clutch is a compact X Series one way freewheel clutch component designed for precision mechanical transmission systems.
It uses advanced sprag locking technology to achieve automatic switching between:
- Locking transmission mode
- Freewheel mode
- Overrunning mode
- Backstop protection mode
Unlike traditional friction clutch systems, the X-133818T transfers torque through mechanical wedge locking between the sprag elements and raceways.
When rotation occurs in the driving direction:
- Sprags move into locking position
- Torque is transferred instantly
- Mechanical efficiency is improved
When the driven side rotates faster:
- Sprags release automatically
- Free rotation occurs
- Reverse torque is prevented
This compact design makes X-133818T suitable for applications requiring precise directional control and reliable operation.
Product Overview
| Item | Specification |
|---|---|
| Model | X-133818T |
| Product Type | Sprag Freewheel Clutch |
| Series | X Series |
| Structure | Sprag Retainer Assembly |
| Inner Diameter | 20.345 mm |
| Outer Diameter | 37.008 mm |
| Width | 10 mm |
| Torque Capacity | Approx. 49 Nm |
| Function | One Way Transmission |
| Application | Industrial / Automotive Components |
Working Principle of X-133818T One Way Clutch
Locking Operation
During power transmission:
- Input shaft begins rotation.
- Internal sprag elements move into wedge locking position.
- Inner and outer races connect mechanically.
- Torque is transmitted efficiently.
Advantages:
- Fast engagement
- Low energy loss
- Reliable torque transmission
- Compact structure
Overrunning Operation
During freewheel operation:
- Driven component exceeds input speed.
- Sprags release from locking position.
- Relative rotation occurs.
- Mechanical stress is reduced.
This allows the transmission system to operate smoothly without additional control mechanisms.
Key Features of X-133818T Sprag Clutch
1. Compact X Series Design
X-133818T features a compact structure:
| Parameter | Value |
|---|---|
| Inner Diameter | 20.345 mm |
| Outer Diameter | 37.008 mm |
| Width | 10 mm |
The compact size makes it suitable for:
- Limited installation space
- Small mechanical assemblies
- Precision transmission systems
2. Precision Sprag Locking Mechanism
The sprag elements provide:
| Feature | Benefit |
|---|---|
| Wedge locking design | Instant torque engagement |
| Multiple sprags | Balanced load distribution |
| Precision machining | Stable operation |
| Compact cage structure | Space saving |
3. Reliable One-Way Transmission Performance
X-133818T provides:
- Directional torque control
- Reverse rotation prevention
- Smooth overrunning
- Long operating life
Typical applications require:
- Frequent switching
- Accurate positioning
- Stable mechanical response
Application Areas
Industrial Applications
X-133818T can be applied in:
| Industry | Function |
|---|---|
| Automation Equipment | Direction control |
| Packaging Machinery | One-way transmission |
| Textile Machinery | Drive switching |
| Conveyor Systems | Backstop protection |
| Mechanical Drives | Torque control |
Automotive Component Applications
Possible automotive applications:
| Application | Function |
|---|---|
| Transmission Components | One-way torque control |
| Starter Systems | Reverse prevention |
| Drive Assemblies | Rotation management |
| Mechanical Modules | Overrunning |
X-133818T Compared With Traditional Clutch Systems
| Comparison | X-133818T Sprag Clutch | Friction Clutch |
|---|---|---|
| Locking Method | Mechanical sprag locking | Friction contact |
| Response Speed | Instant | Slower |
| Slip Loss | Very Low | Higher |
| Wear | Low | Higher |
| Maintenance | Reduced | More frequent |
Why Choose LSTO X Series Sprag Clutch?
LSTO specializes in:
- X Series Sprag Clutch
- DC Series Freewheel Clutch
- Industrial One Way Clutch
- Automotive Transmission Components
Manufacturing capability includes:
Precision Production
- CNC machining
- Heat treatment
- Precision grinding
- Assembly inspection
- Performance testing
Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Testing | Ensure mechanical strength |
| Dimensional Inspection | Guarantee installation accuracy |
| Hardness Testing | Improve wear resistance |
| Torque Testing | Verify locking performance |
OEM Replacement & Custom Manufacturing
LSTO provides:
- OEM replacement solutions
- Drawing-based manufacturing
- Sample development
- Customized specifications
For global customers:
| Service | Benefit |
|---|---|
| Engineering Support | Correct product matching |
| Prototype Testing | Reduce development risk |
| Mass Production | Stable supply |
| Quality Control | Reliable performance |
How To Select X-133818T Replacement Supplier?
When sourcing X Series sprag clutches, buyers should evaluate:
Manufacturing Capability
Important factors:
- Precision machining ability
- Sprag clutch production experience
- Quality management system
Engineering Support
Professional suppliers should provide:
- Product selection guidance
- Application analysis
- Custom solutions
Supply Reliability
Consider:
- Production capacity
- Delivery stability
- Export experience
FAQ About X-133818T Sprag Clutch
What is X-133818T Sprag Clutch?
X-133818T is a compact X Series sprag freewheel clutch designed for one-way transmission and overrunning applications.
What are the dimensions of X-133818T?
Standard dimensions:
- Inner Diameter: 20.345 mm
- Outer Diameter: 37.008 mm
- Width: 10 mm
What is the torque capacity of X-133818T?
The approximate torque capacity is:
49 Nm
What are the applications of X-133818T?
Typical applications include:
- Industrial machinery
- Automation equipment
- Transmission systems
- Mechanical drive assemblies
Can LSTO manufacture X-133818T replacement products?
Yes. LSTO provides OEM replacement and customized X Series sprag clutch manufacturing according to drawings, samples and application requirements.
Conclusion
The X-133818T Sprag Clutch is a compact and reliable X Series one way freewheel clutch designed for industrial and automotive transmission applications.
With its 20.345mm inner diameter, 37.008mm outer diameter and 10mm compact structure, X-133818T provides precise one-way locking, smooth overrunning operation and dependable mechanical performance.
LSTO specializes in Sprag Clutch, One Way Clutch and Freewheel Clutch manufacturing, offering OEM replacement, customized engineering solutions and global supply capability.
