High-Performance Overrunning and Backstopping with Sprag Clutch SF 37-14.5

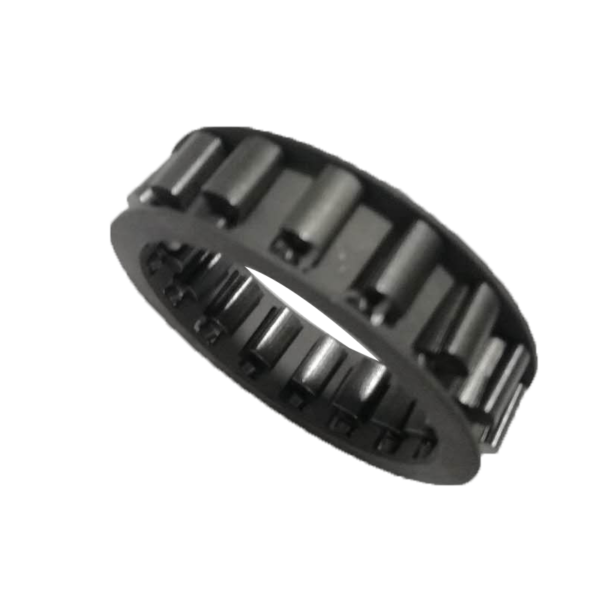

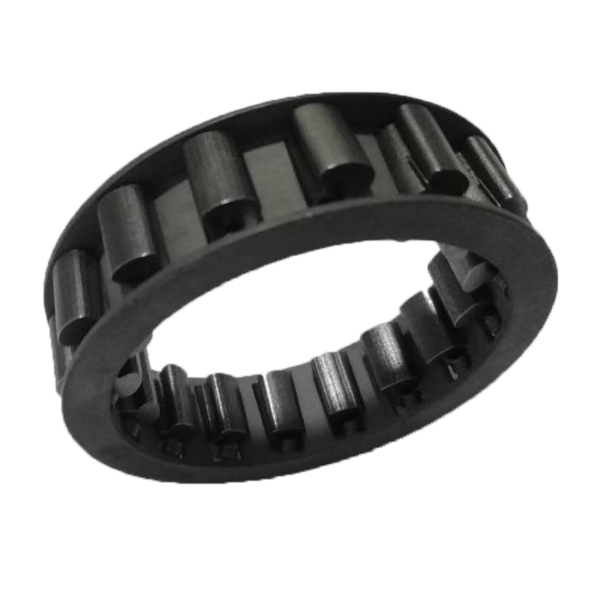

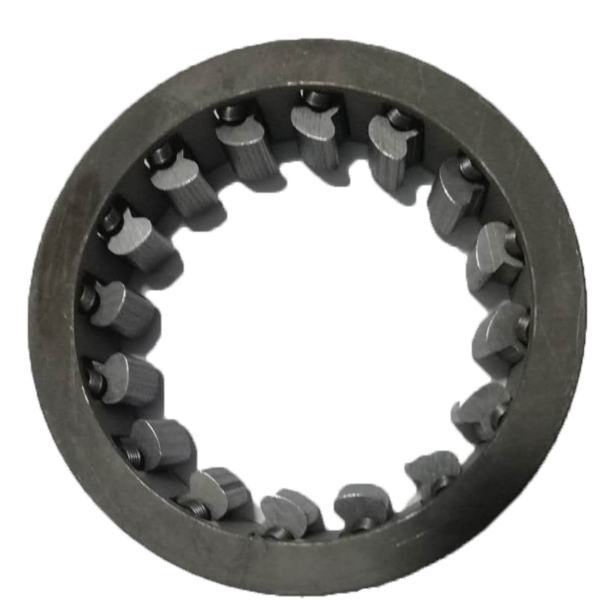

LST SF 37-14.5 cage freewheel sprag clutch component is precision-engineered to deliver outstanding overrunning, backstopping, and indexing performance within custom industrial and automotive drivetrains. Tailored to install directly between customer-supplied inner and outer rings , this premium component features a precision-calibrated 14-sprag matrix supporting a nominal torque capacity up to 270 N·m and a high-speed outer ring lift-off threshold of 2,900 RPM.
Manufactured from high-grade, vacuum-degassed GCr15 bearing steel, the SF 37-14.5 enforces rigid sub-micron tolerance control across its 37mm ID, 55mm OD, and 14.5mm width profiles to ensure 100% drop-in drawing compliance. Its advanced lift-off design eliminates freewheeling friction drag, minimizing thermal generation and mechanical wear. It is the definitive B2B choice for global transmission rebuilders, MRO networks, and machinery builders seeking to maximize power density, stack multiple cages for increased torque capacity, and secure a zero-defect mechanical parts supply chain.
High-Performance Overrunning and Backstopping with Sprag Clutch SF 37-14.5
Are you confronting critical backstopping failures, mechanical power loss, or severe positioning drift during high-frequency indexing runs in your automotive systems or heavy-duty industrial machinery?
In complex automotive drivetrains and precise power transmission assemblies, selecting a standard-grade or mismatched freewheel cage often leads to rapid mechanical degradation. When system integration lacks precise sub-micron structural support under sudden torque spikes, low-grade sprags experience rapid element rollover or tilt unevenly. This creates severe race friction, metal contamination within the lubrication circuit, profile scoring, and eventually, catastrophic equipment downtime.
This comprehensive technical guide demonstrates how upgrading to the premium high-performance overrunning and backstopping with sprag clutch SF 37-14.5 ensures perfect component alignment, instant lockup response, and extended operational service life.
Features
Cage Freewheels SF are sprag freewheels to beinstalled between customer-supplied inner andouter rings.
In addition to the standard type, two othertypes are available for extended service life.
Nominal torques up to 93 000 Nm.
Mounting
The lateral guidance of the Cage Freewheelscan be effected either by a shoulder on theouter ring or by guard rings or guard discswhich are fixed in the outer ring.
Torque transmission capacity can be increasedif several cages are arranged side by side. In thiscase please consult with RINGSPANN on trans-missible torques.
Please note the technical points on page 108
regarding the sprag tracks.
Example for ordering
Freewheel size SF 44-14,5,standard type:SF44-14,5K
Quick Answer
To effectively manage high-velocity overrunning and secure absolute mechanical backstopping under heavy load conditions, deploying the precision-hardened SF 37-14.5 cage freewheel assembly is essential. Engineered to fit precisely between customer-supplied inner and outer rings , it features a rated nominal torque of up to 270 N·m and an advanced sprag lift-off profile active at speeds up to 2,900 RPM. This premium matrix uniformly distributes intense torsional friction, completely eliminating backward slippage and element rollover across severe operation cycles.
Technical Specifications & Dimension Matrix (SF 37-14.5)
The SF 37-14.5 is manufactured to rigid drawing-compliant standards, establishing micro-level precision controls across all engineering dimensions:
| Component Metric | Specification Values (Data-Backed) |
| Product Model |
SF 37-14.5 (Available in K, KT, and KZ Types) |
| Nominal Torque ($M_N$) |
270 N·m (Type K/KT) / 210 N·m (Type KZ) |
| Inner Ring Race Diam. ($J$) |
37 mm |
| Outer Ring Race Diam. ($D$) |
55 mm |
| Cage Axial Width ($B$) |
14.5 mm |
| Total Assembly Width ($K$) |
75 mm |
| Sprag Element Quantity |
14 Precision Sprags |
| Sprag Lift-Off Speed ($n_{max}$) |
2,900 RPM (at outer ring) |
| Net Component Weight |
0.06 kg |
Step-by-Step Installation & Inspection Protocol
Step 1: Meticulously Audit Mating Ring Profiles
The SF 37-14.5 operates as a cage-only assembly without built-in rings. Before installation, thoroughly clean and degrease the customer-supplied inner hub and outer housing races. Use a digital indicator to verify sub-micron concentricity and strict geometric tolerances.
Step 2: Implement Secure Lateral Guidance
Because the cage rests freely, lateral guidance must be established. Ensure proper execution either via a precision-machined shoulder on the outer ring or by installing guard rings/discs fixed into the outer casing.
Step 3: Lubrication Optimization
Never run precision sprag matrices dry. Submerge the sub-assembly in premium synthetic transmission fluid or low-drag industrial oil to establish a reliable hydrodynamic wear barrier from the first revolution.
Frequently Asked Questions
Q: What functions do the SF 37-14.5 freewheel primarily perform?
The SF 37-14.5 is highly versatile, operating seamlessly as a directional backstop, an overrunning clutch for secondary power drives, or an indexing freewheel for precise material feeding.
Q: What is the difference between Types K, KT, and KZ for the SF37-14.5?
Type K and KT provide a high nominal torque threshold of 270 N·m. Type KZ is engineered for specialized extended service life cycles under demanding continuous overrunning conditions, supporting a torque rating of 210 N·m.
Q: Does LST provide customization for high-volume commercial distribution?
Yes. LST is a professional high-volume OEM/ODM manufacturer. We specialize in producing drawing-compliant one-way clutches, modular cage freewheels, and precision bearings with micro-level tolerance control to secure global B2B supply chains.
Ready to Secure Your Drivetrain Supply Chain?
If your commercial distribution network, automotive remanufacturing plant, or industrial gear workshop demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our SF 37-14.5 sprag clutches feature premium steel elements to keep your business moving forward.
