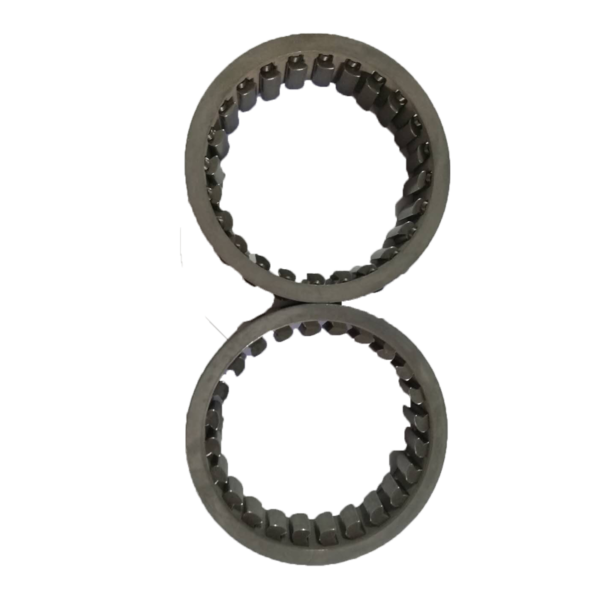

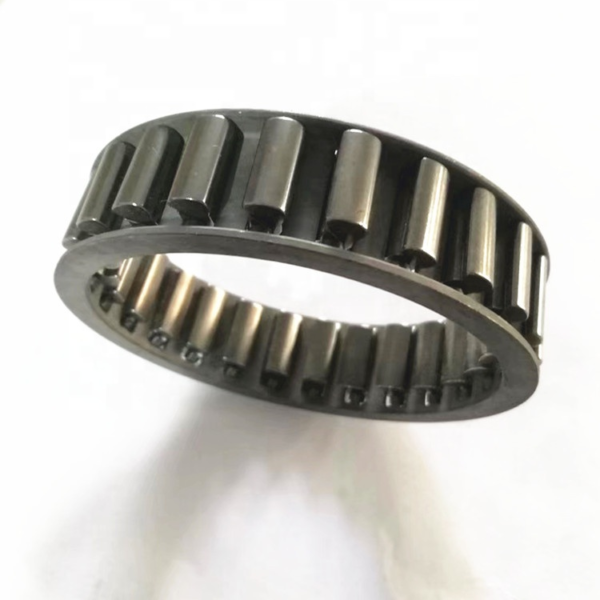

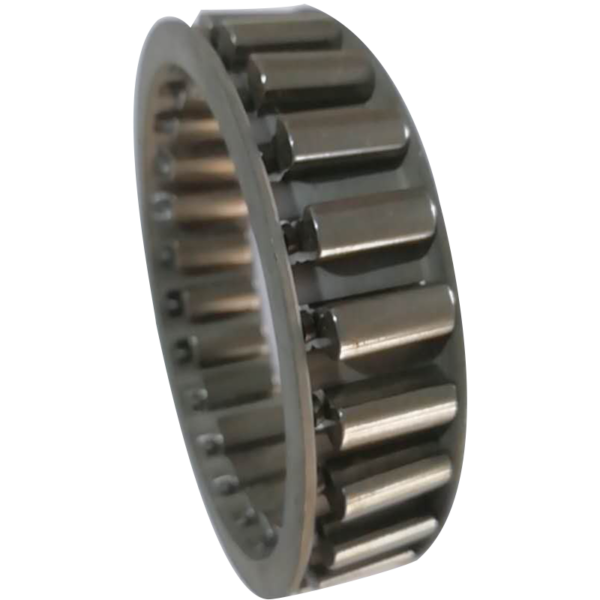

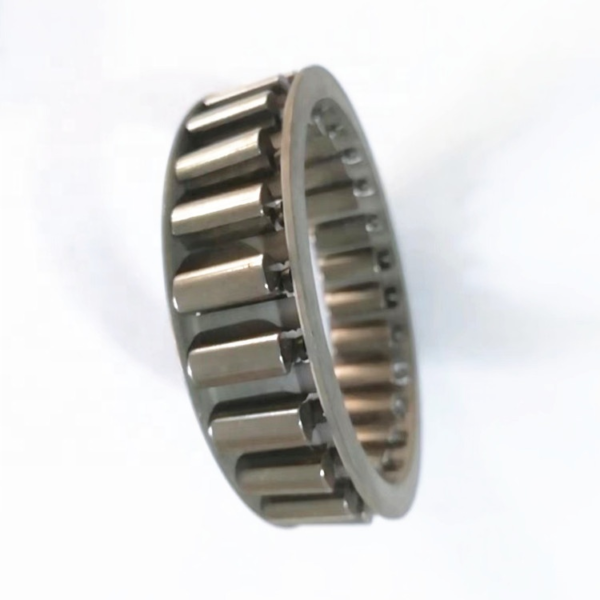

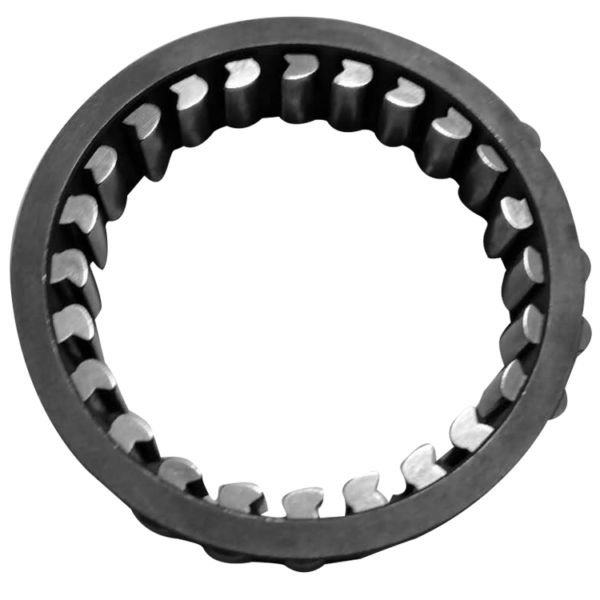

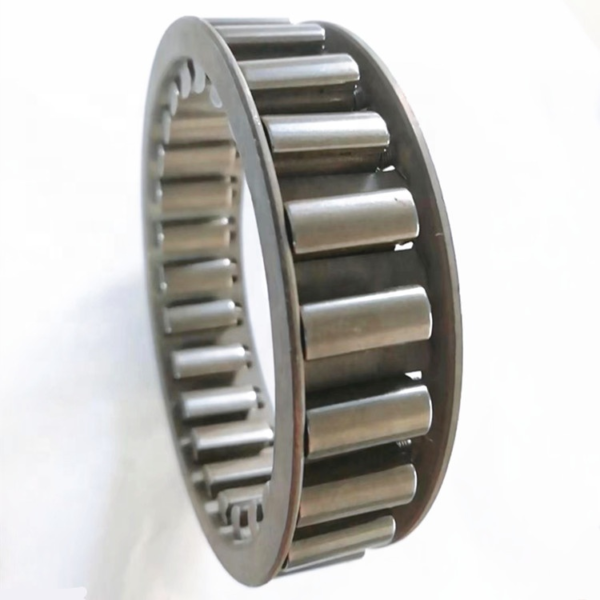

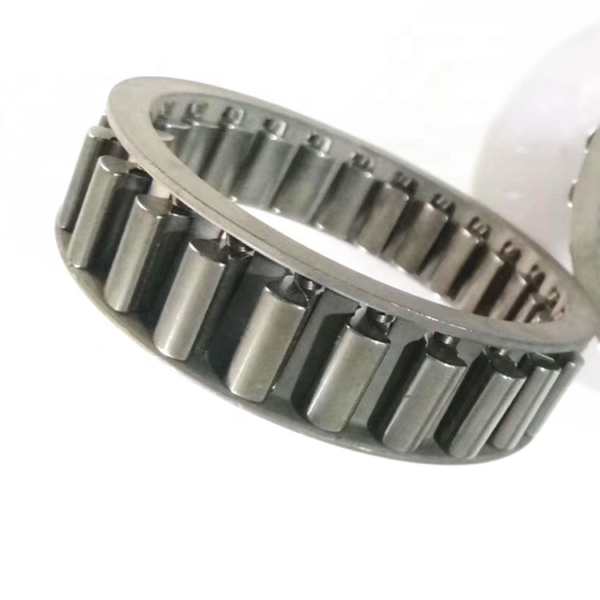

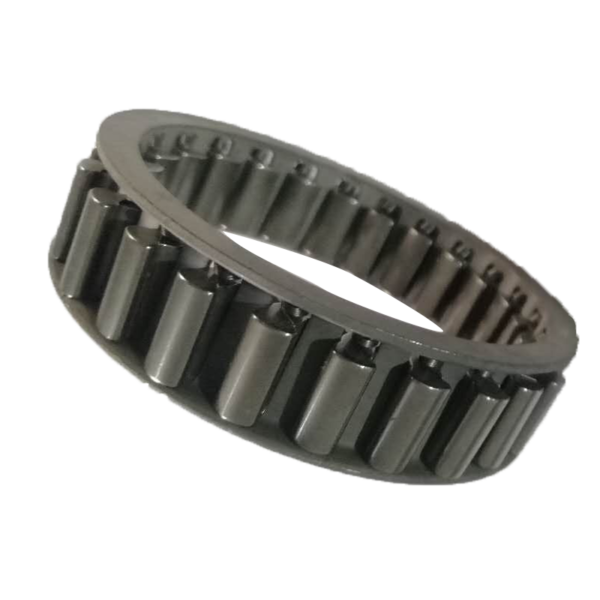

LST SF 54 and SF 57 cage freewheel sprag clutch components are precision-engineered to deliver outstanding overrunning, backstopping, and indexing performance within custom industrial and automotive drivetrains. Tailored to install directly between customer-supplied inner and outer rings with matching 54mm and 57mm inner race design diameters, these premium components feature a synchronized cam matrix that guarantees instantaneous lockup and maximized torque-bearing efficiency under peak cyclic loading.

Manufactured from high-grade, vacuum-degassed GCr15 bearing steel, the SF series enforces rigid sub-micron tolerance control to ensure 100% drop-in drawing compliance. Their advanced lift-off configuration significantly minimizes freewheeling friction drag, reducing thermal generation and mechanical wear. They are the definitive B2B choice for global transmission rebuilders, MRO networks, and machinery builders seeking to maximize power density, stack multiple cages for increased torque capacity, and secure a zero-defect mechanical parts supply chain.

High-Performance Overrunning and Backstopping with Sprag Clutch SF 54 & SF 57

Are you confronting critical backstopping failures, mechanical power loss, or severe positioning drift during high-frequency indexing runs in your automotive systems or heavy-duty industrial machinery?

In complex automotive drivetrains and precise power transmission assemblies, the overrunning clutch component acts as an absolute directional gatekeeper. Selecting a standard-grade or mismatched freewheel cage often leads to rapid mechanical degradation. When system integration lacks precise sub-micron structural support under sudden torque spikes, low-grade sprags experience rapid element rollover or tilt unevenly. This creates severe race friction, metal contamination within the lubrication circuit, profile scoring, and eventually, catastrophic equipment downtime.

This comprehensive technical guide demonstrates how upgrading to the premium high-performance overrunning and backstopping with sprag clutch SF 54 & SF 57 ensures perfect component alignment, instant lockup response, and extended operational service life.

Quick Answer

To effectively manage high-velocity overrunning and secure absolute mechanical backstopping under heavy load conditions, deploying the precision-hardened SF 54 or SF 57 cage freewheel assembly is essential. Engineered to fit precisely between customer-supplied inner and outer rings with matching 54mm or 57mm inner race design diameters, these premium components force all precision cams to engage synchronously. This robust configuration uniformly distributes intense torsional friction, completely eliminating backward slippage and element rollover across severe operation cycles.

Technical Advantages of the SF 54 / SF 57 Cage Design

The SF 54 and SF 57 are manufactured to rigid drawing-compliant standards, establishing micro-level precision controls across all engineering dimensions:

  • Flexible Ring Integration: Specifically engineered as a cage-only assembly to integrate seamlessly into customer-supplied housing setups, optimizing radial space limitations within compact transmission boxes.

  • High-Speed Lift-Off Capabilities: Features an advanced sprag lift-off profile that utilizes centrifugal force during high-speed overrunning. This minimizes or completely eliminates element-to-race contact friction, reducing heat generation.

  • Scalable Torque Distribution: The unique modular cage architecture allows multiple SF cages to be arranged side-by-side within the same race channel, effectively multiplying the overall torque capacity of your drivetrain.

Step-by-Step Installation & Inspection Protocol

Step 1: Meticulously Audit Mating Ring Profiles

The SF 54 and SF 57 operate as cage-only freewheels without built-in rings. Before installation, thoroughly clean and degrease the customer-supplied inner hub and outer housing races. Use a digital outside micrometer to verify sub-micron concentricity and strict geometric tolerances.

Step 2: Implement Secure Lateral Guidance

Because the cage rests freely between the races, proper lateral axial guidance must be established. Ensure proper execution either via a precision-machined shoulder on the outer ring or by installing guard rings/discs fixed into the outer casing to protect the internal freewheel matrix.

Step 3: Lubrication Optimization

Never run precision sprag matrices dry. Submerge the sub-assembly in premium synthetic transmission fluid or low-drag industrial oil to establish a reliable hydrodynamic wear barrier from the very first revolution.

Ready to Secure Your Drivetrain Supply Chain?

If your commercial distribution network, automotive remanufacturing plant, or industrial gear workshop demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our SF 54 and SF 57 sprag clutches feature premium steel elements to keep your business moving forward.
