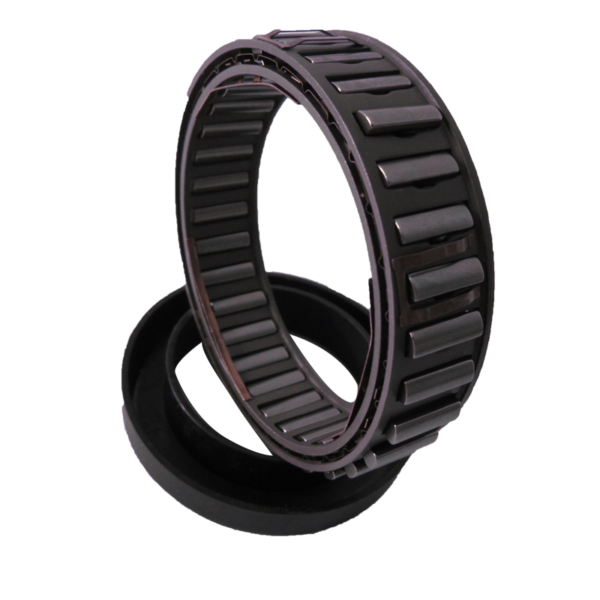

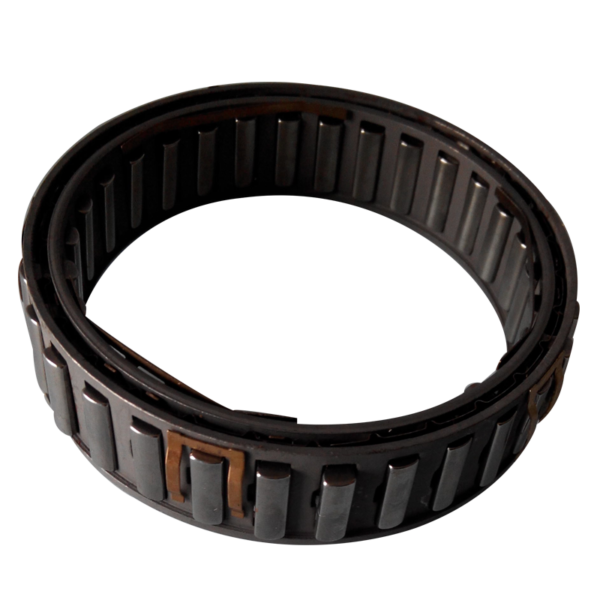

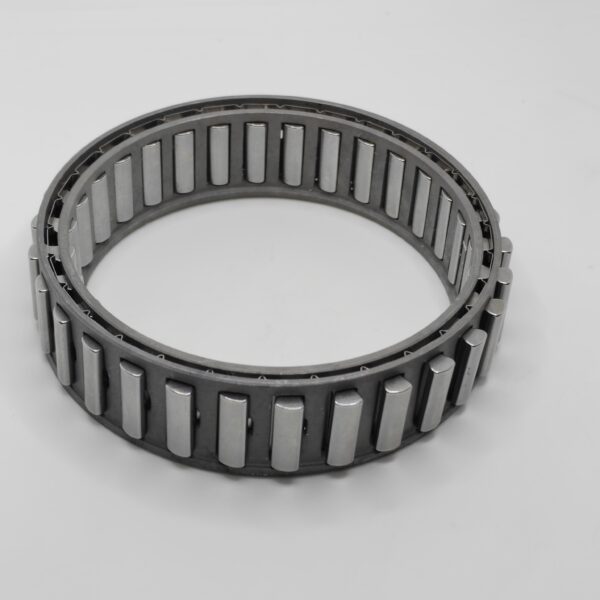

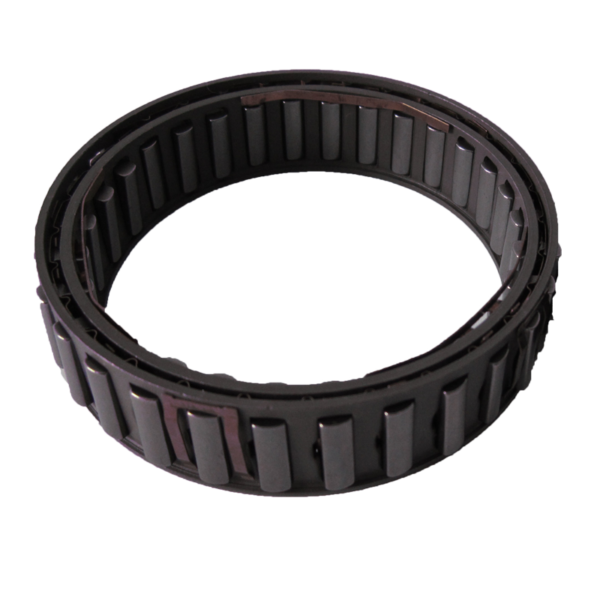

Precision Overrunning and Torque Transfer with Sprag Clutch DC7221B

Are you confronting critical power loss, severe mechanical vibrations during heavy-load acceleration, or unexpected freewheel slippage in your high-torque automotive transmissions or industrial drive mechanisms?

In high-capacity power transmission environments, standard-height clutches frequently suffer from localized stress concentration, leading to catastrophic element rollover. When generic single-cage freewheels face continuous shock loads, intense fluid pressure fluctuations, or extreme torque spikes, the internal sprags flip sideways or skate across the race instead of locking instantly. This results in lost mechanical efficiency, rapid race scoring, metal contamination in the oil circuit, and ultimately, costly equipment downtime.

This comprehensive technical guide explores how migrating to a premium precision overrunning and torque transfer with sprag clutch DC7221B featuring an optimized 21.5mm heavy-duty profile stabilizes drivetrain power transfer and guarantees zero-slip operation.

💡 Quick Answer

To effectively convert high-velocity torque into stable, unidirectional mechanical drive power under extreme shock loads, deploying the upgraded DC7221B sprag clutch assembly is essential. Featuring an advanced Double Cage (DC) stabilization matrix and a precision-engineered 21.5mm height profile, this premium component ensures that every single sprag element engages and disengages synchronously. This design drastically increases the torque-bearing surface area, completely eliminating mechanical backlash, preventing element rollover, and guaranteeing instantaneous reverse locking across all severe operational cycles.

Technical Advantages of the DC7221B 21.5mm Double-Cage Design

The DC7221B is manufactured to rigid drawing-compliant specifications, offering distinct structural upgrades over standard aftermarket components:

• Synchronized Dual-Cage Matrix: The inner and outer steel cages work in perfect tandem to keep the sprag elements uniformly aligned. This prevents asymmetric engagement and ensures all cams bite into the races at the exact same millisecond.

• Optimized 21.5mm Height Profile: The 21.5mm heightened design expands the active contact surface area of the locking cams. This allows the assembly to handle significantly higher torque thresholds and extreme shock loads within a compact envelope.

• Premium GCr15 Steel Metallurgy: Advanced vacuum-degassed bearing steel undergoes multi-stage heat treatment to maintain a high-hardness mechanical “bite” under extreme thermal thresholds and heavy cyclic stress.

Step-by-Step Installation & Inspection Protocol

Step 1: Execute Sub-Micron Race Auditing

The DC7221B operates without built-in bearings, meaning perfect race alignment and concentricity are mandatory. Before installation, thoroughly clean the mating inner hub and outer drum races. Use a digital outside micrometer to verify sub-micron tolerances and ensure the surfaces are free of microscopic scoring, thermal cracking, or flat spots.

Step 2: Confirm Instant Mechanical Lockup Orientation

Manually test the sub-assembly on the bench. The DC7221B must freewheel seamlessly and silently with minimal drag torque in its designated direction and lock up solid instantly in the opposite direction. Verify that the dual-cage orientation matches your system’s overrunning requirements prior to final casing enclosure.

Step 3: Implement Immediate Hydrodynamic Lubrication

Never assemble high-precision drivetrain components dry. Completely submerge the double-cage assembly in the specified high-grade synthetic transmission fluid or industrial lubricating oil to guarantee a protective hydrodynamic layer is active from the very first rotation cycle.

Recommended Heavy-Duty Overhaul Components

Component / Tool	Why It Helps
LST DC7221B 21.5mm Sprag	Engineered with dual cages and a 21.5mm profile to eliminate element rollover under peak torque.
Digital Outside Micrometer	Validates sub-micron race concentricity prior to final installation.
Precision Dial Indicator Kit	Measures precise axial endplay clearances to protect the internal freewheel.
Full-Synthetic Lubricant	Provides an ideal hydrodynamic film to minimize freewheeling friction drag.

Frequently Asked Questions

Q: What primary industries and platforms utilize the DC7221B sprag clutch?

The DC7221B is highly versatile, widely integrated into heavy automotive automatic transaxles, heavy-duty industrial gearboxes, packaging machinery indexing units, and high-load material handling conveyor backstops.

Q: Why is the 21.5mm height dimension critical during a rebuild?

The 21.5mm height specifies the exact contact width with the matching drum races. Replacing it with an incorrect height will distort the load-bearing surface area, leading to asymmetric pressure and premature failure.

Q: Does LST support drawing-compliant customization for non-standard applications?

Yes. LST is a professional high-volume OEM/ODM manufacturer. We specialize in producing drawing-compliant one-way clutches, backstops, and precision bearings with micro-level tolerance control to secure global B2B supply chains.
