High-Performance Overrunning and Backstopping with Sprag Clutch SF 44

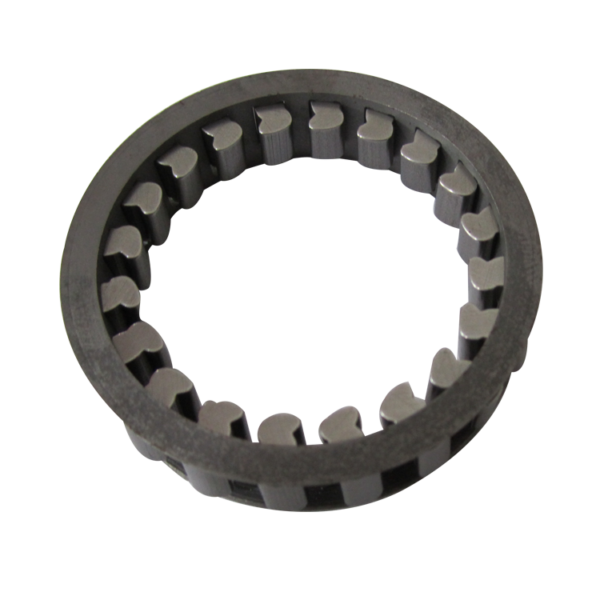

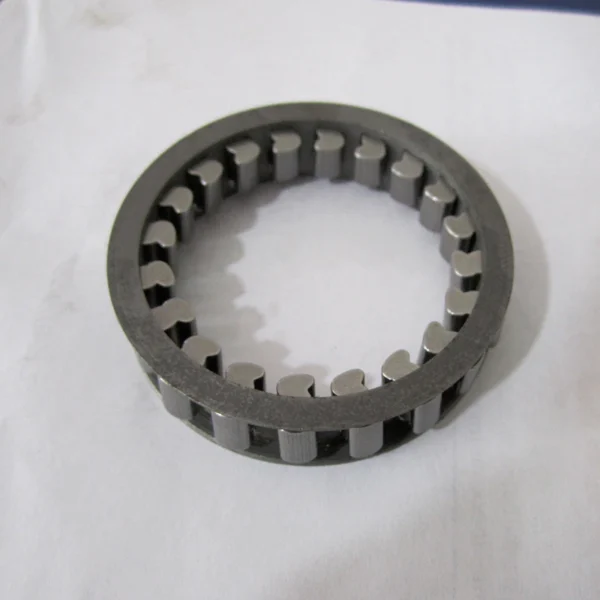

LST SF 44 cage freewheel sprag clutch component is precision-engineered to deliver outstanding overrunning, backstopping, and indexing performance within custom industrial and automotive drivetrains. Tailored to install directly between customer-supplied inner and outer rings with a 44mm inner race design diameter, this premium component features a synchronized cam matrix that guarantees instantaneous lockup and maximized torque-bearing efficiency under peak cyclic loading.
Manufactured from high-grade, vacuum-degassed GCr15 bearing steel, the SF 44 enforces rigid sub-micron tolerance control to ensure 100% drop-in drawing compliance. Its advanced lift-off configuration significantly minimizes freewheeling friction drag, reducing thermal generation and mechanical wear. It is the definitive B2B choice for global transmission rebuilders, MRO networks, and machinery builders seeking to maximize power density, stack multiple cages for increased torque capacity, and secure a zero-defect mechanical parts supply chain.
High-Performance Overrunning and Backstopping with Sprag Clutch SF 44
Are you confronting critical backstopping failures, mechanical power loss, or severe positioning drift during high-frequency indexing runs in your automotive systems or heavy-duty industrial machinery?
In complex automotive drivetrains and precise power transmission assemblies, the overrunning clutch component acts as an absolute directional gatekeeper. Selecting a standard-grade or mismatched freewheel cage often leads to rapid mechanical degradation. When system integration lacks precise sub-micron structural support under sudden torque spikes, low-grade sprags experience rapid element rollover or tilt unevenly. This creates severe race friction, metal contamination within the lubrication circuit, profile scoring, and eventually, catastrophic equipment downtime.
This comprehensive technical guide demonstrates how upgrading to the premium high-performance overrunning and backstopping with sprag clutch SF 44 ensures perfect component alignment, instant lockup response, and extended operational service life.
💡 Quick Answer
To effectively manage high-velocity overrunning and secure absolute mechanical backstopping under heavy load conditions, deploying the precision-hardened SF 44 cage freewheel assembly is essential. Engineered to fit precisely between customer-supplied inner and outer rings with a 44mm inner race design diameter, this premium component forces all precision cams to engage synchronously. This robust configuration uniformly distributes intense torsional friction, completely eliminating backward slippage and element rollover across severe operation cycles.
Technical Advantages of the SF 44 Cage Design
The SF 44 is manufactured to rigid drawing-compliant standards, establishing micro-level precision controls across all engineering dimensions:
-
Flexible Ring Integration: Specifically engineered as a cage-only assembly to integrate seamlessly into customer-supplied housing setups, optimizing radial space limitations within compact transmission boxes.
-
High-Speed Lift-Off Capabilities: Features an advanced sprag lift-off profile that utilizes centrifugal force during high-speed freewheeling. This minimizes or completely eliminates element-to-race contact friction, reducing heat generation.
-
Scalable Torque Distribution: The unique modular cage architecture allows multiple SF 44 cages to be arranged side-by-side within the same race channel, effectively multiplying the overall torque capacity of your drivetrain.
Step-by-Step Installation & Inspection Protocol
Step 1: Meticulously Audit Mating Ring Profiles
The SF 44 operates as a cage-only freewheel without built-in rings. Before installation, thoroughly clean and degrease the customer-supplied inner hub and outer housing races. Use a digital outside micrometer to verify sub-micron concentricity and strict geometric tolerances.
Step 2: Implement Secure Lateral Guidance
Because the cage rests freely between the races, proper lateral axial guidance must be established. Ensure proper execution either via a precision-machined shoulder on the outer ring or by installing guard rings/discs fixed into the outer casing to protect the internal freewheel matrix.
Step 3: Lubrication Optimization
Never run precision sprag matrices dry. Submerge the sub-assembly in premium synthetic transmission fluid or low-drag industrial oil to establish a reliable hydrodynamic wear barrier from the very first revolution.
Frequently Asked Questions
Q: What functions do the SF 44 freewheel primarily perform?
The SF 44 is highly versatile, operating seamlessly as a directional backstop, an overrunning clutch for secondary power drives, or an indexing freewheel for precise material feeding.
Q: Why is the “44” designation critical during a rebuild or OEM setup?
The number 44 specifies the exact design diameter (44mm) of the matching inner ring race. Using this component on mismatched shaft diameters will distort the locking cam angles, causing immediate engagement failure.
Q: Does LST provide customization for high-volume commercial distribution?
Yes. LST is a professional high-volume OEM/ODM manufacturer. We specialize in producing drawing-compliant one-way clutches, modular cage freewheels, and precision bearings with micro-level tolerance control to secure global B2B supply chains.
Free Heavy-Duty Drivetrain Rebuild Blueprint
Download our technical manual and get:
-
✅ SF 44 Rotational Direction & Custom Element Alignment Charts
-
✅ Sub-micron Customer Race Matching & Tolerance Calibration Blueprints
-
✅ High-Speed Lift-Off Optimization and Friction Troubleshooting Guide
-
✅ Power Transmission Components OEM Cross-Reference Sheet
Ready to Secure Your Drivetrain Supply Chain?
If your commercial distribution network, automotive remanufacturing plant, or industrial gear workshop demands zero-defect, drawing-compliant mechanical components, LST provides high-volume manufacturing for premium freewheels. Our SF 44 sprag clutches feature premium steel elements to keep your business moving forward.
